Engine (continued)
14. Close and secure the hood.
15. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Removing and Installing the Throttle Cable

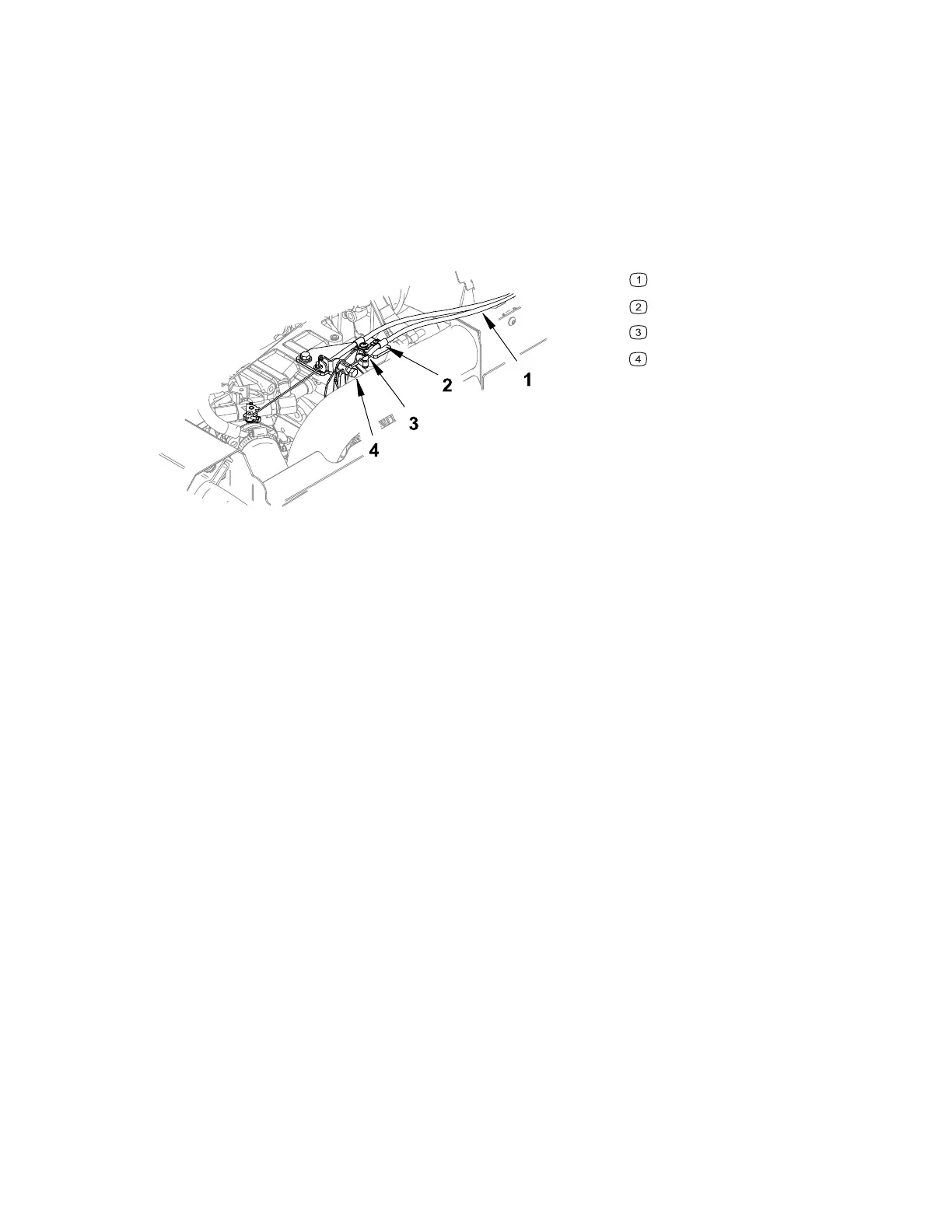

Figure 13
G431967
Throttle cable
Clamp
Housing clamp
Throttle linkage clamp
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Raise the hood and remove the TCM or TCS; refer to Removing and Installing
the TCM, page 6–20 or Removing and Installing the TCS, page 6–22.
4. Locate the throttle cable (Figure 13, item 1) connection to the engine.
5. Disconnect the cable from the clamp (Figure 13, item 2), housing clamp
(Figure 13, item 3), and throttle linkage clamp (Figure 13, item 4).
Engine: Engine Service and Repairs Page 4–22 4520Z
09.40001Rev 00
