Engine (continued)

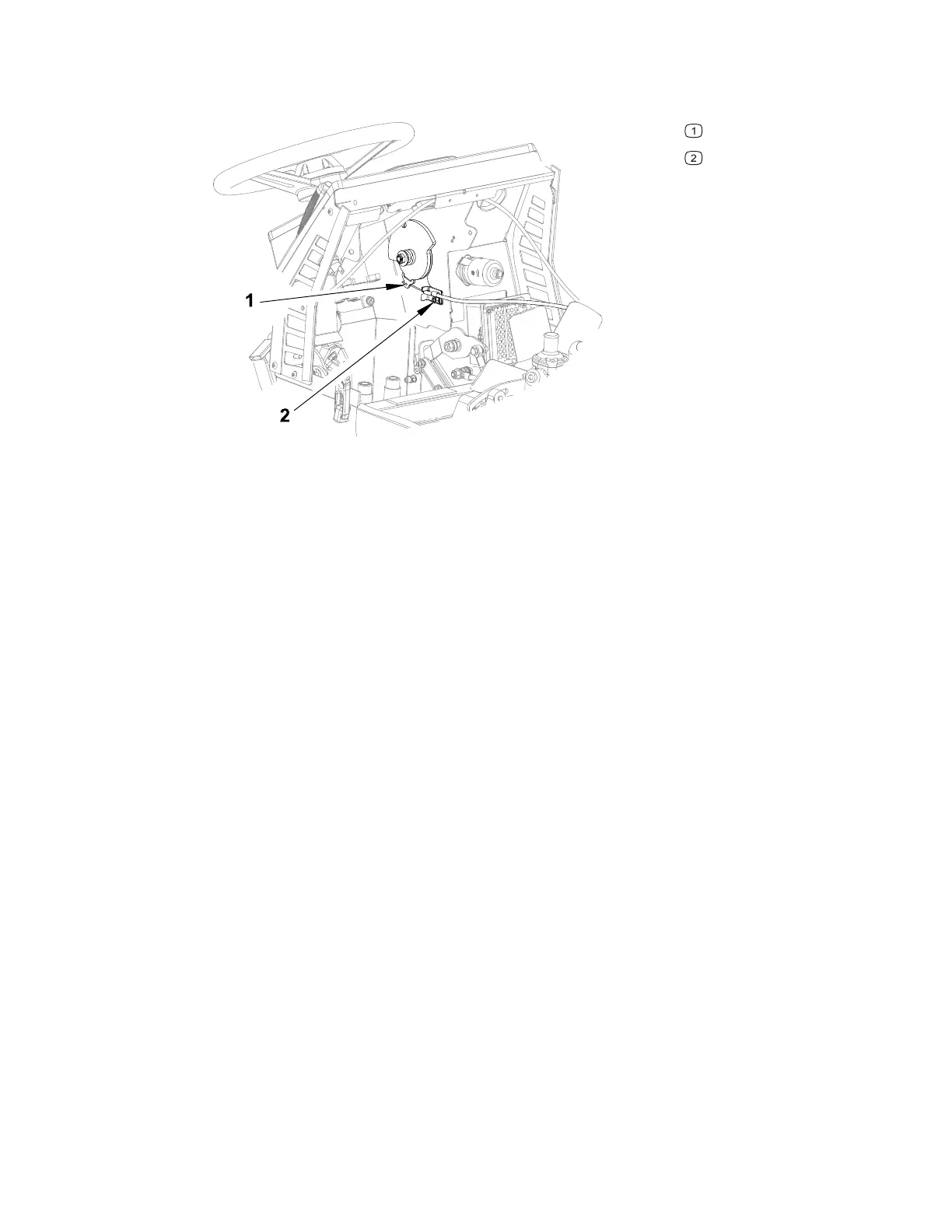

Figure 14
G432616
Throttle lever connection
Clamp
6. Locate the throttle cable under the dash and remove the clamp (Figure 14, item
2).
7. Disconnect the throttle cable from the throttle lever connection (Figure 14, item
1).
8. Remove the throttle cable from the machine.
9. To install the throttle cable, locate the throttle lever under the dash.
10. Connect the throttle cable to the throttle lever connection (Figure 14, item 1).
11. Loosely install the clamp (Figure 14, item 2) around the cable under the dash.
12. Route the cable from under the dash around the left side of the radiator to the
throttle linkage on the engine.
13. Ensure that the throttle lever is in the low idle position.
14. Route the cable through the clamp (Figure 13, item 2) and through the cable
housing clamp (Figure 13, item 3).
15. Route the cable through the throttle linkage clamp (Figure 13, item 4).
16. Tighten all the clamps.
17. Check the throttle lever function. Ensure that the throttle lever moves smoothly,
and the cable does not bind.
18. Close and secure the hood.
19. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
4520Z Page 4–23 Engine: Engine Service and Repairs
09.40001Rev 00
