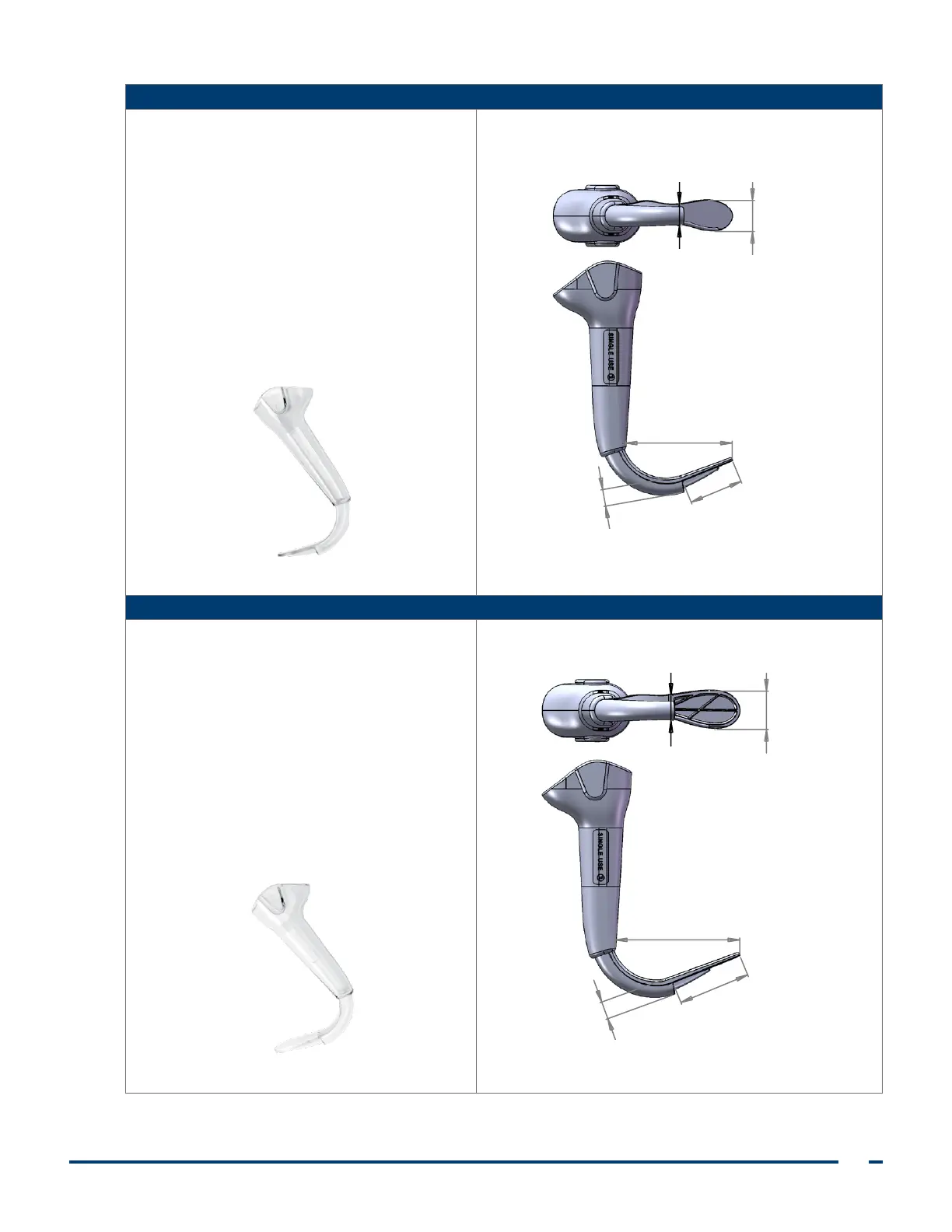

Operations & Maintenance Manual: Product Specifications
GVL
®
2 STAT
Blade tip to handle: 55.7 mm
Height at camera: 8.6 mm
Width at camera: 11.2 mm
Blade length in front of camera: 28.0 mm
Max blade width in front of camera: 16.0 mm
Direction of View (DOV): 0°
Insertion portion (IP) Length: 62 mm
Insertion portion (IP) Width: 18 mm
16.0 mm
55.7 mm
28.0 mm
8.6 mm
11.2 mm
GVL 2.5 STAT
Blade tip to handle: 63.4 mm
Height at camera: 9.1 mm
Width at camera: 12.7 mm
Blade length in front of camera: 37.0 mm
Max blade width in front of camera: 19.7 mm
Direction of View (DOV): +2°
Insertion portion (IP) Length: 74 mm
Insertion portion (IP) Width: 22 mm
19.7 mm
63.4 mm
37.0 mm
9.1 mm
12.7 mm
