VERITAS NetBackup 5240 Hardware Installation Guide

To connect four storage shelves to an appliance
1

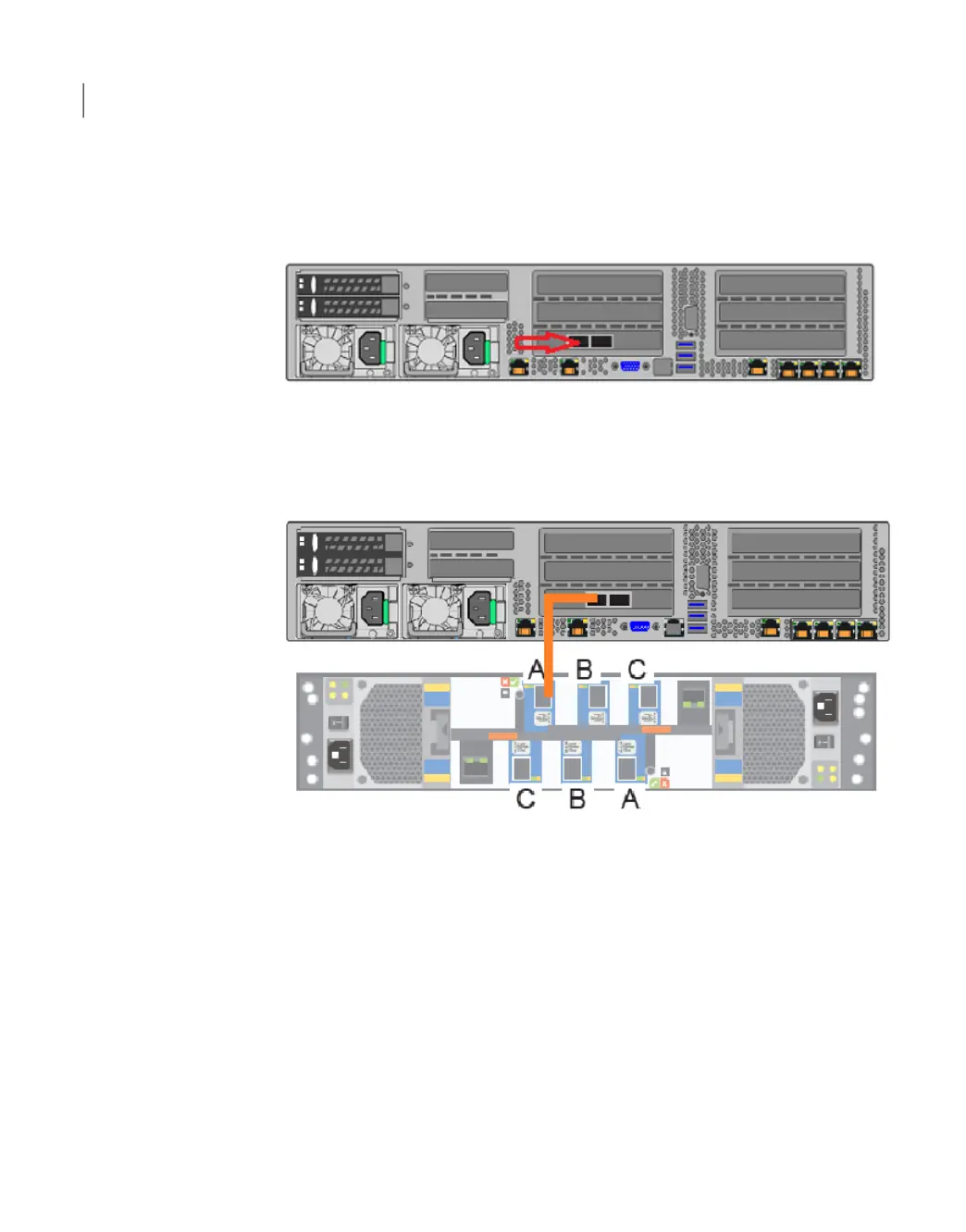

Connect a SAS-3 cable to the left port in the appliance External RAID PCIe
card.
2
Be sure that the blue clip in this port points down.
3
Connect the other end of the SAS-3 cable to port A in the top I/O module of
the first storage shelf.
4
Be sure that the blue clip in this port points down.
Adding one or more storage shelves to an operating 4TB appliance that does not have any storage shelves
Connecting four storage shelves to an appliance
108
