VERITAS NetBackup 5240 Hardware Installation Guide

Connecting two storage shelves to an appliance

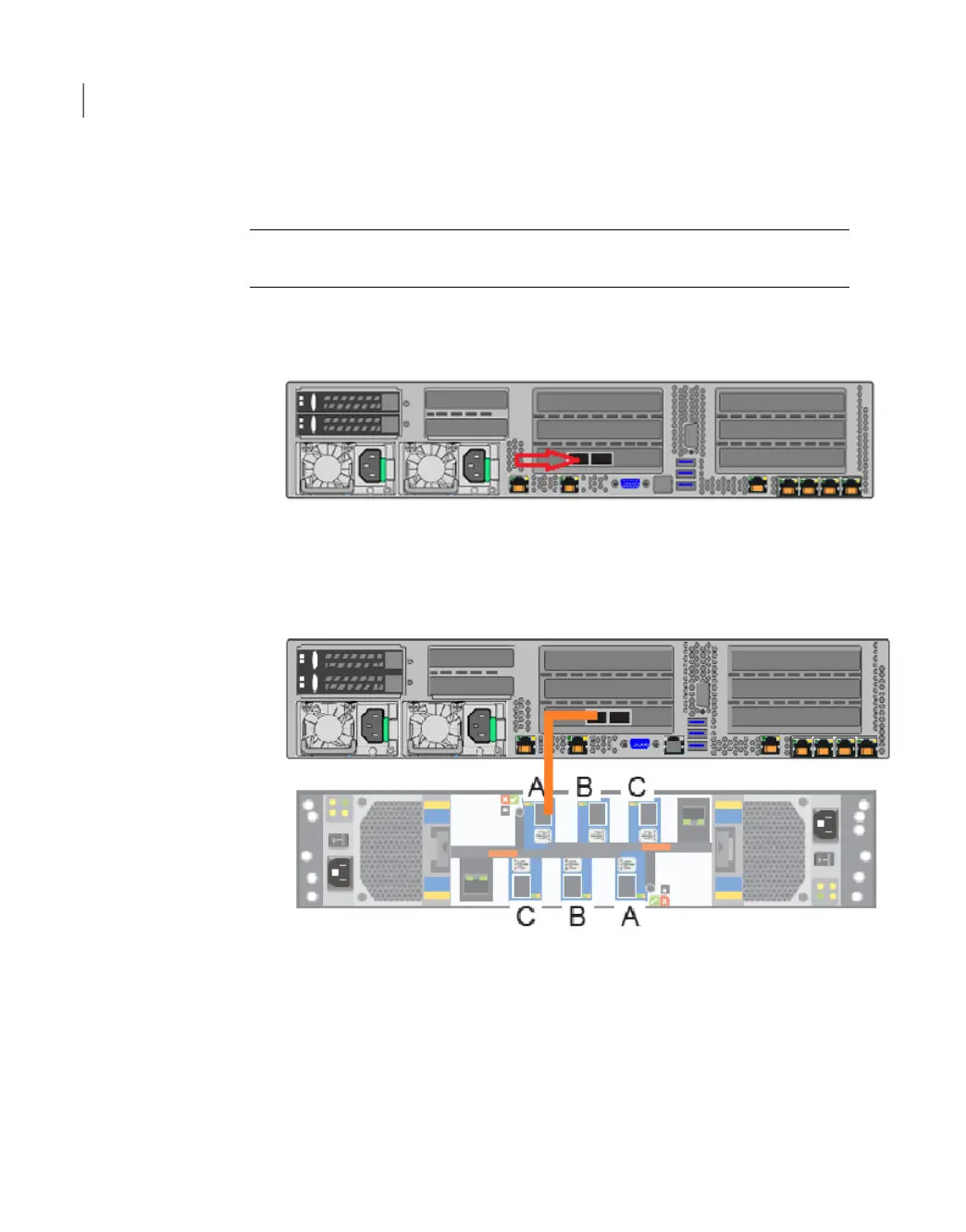

Note: The cables in the following diagrams are shown in different colors for
demonstration purposes only. The actual cables are black.
To connect two storage shelves to the appliance
1
Connect a SAS-3 cable to the left RAID port in the appliance.
2
Be sure that the blue clip on the connector in the appliance port points down.
3
Connect the other end of this cable to port A in the top I/O module of the storage
shelf.
4
Be sure that the blue clip on the connector in port A points down.
Adding one or more storage shelves to an operating 4TB appliance that does not have any storage shelves
Connecting two storage shelves to an appliance
98
