VERITAS NetBackup 5240 Hardware Installation Guide

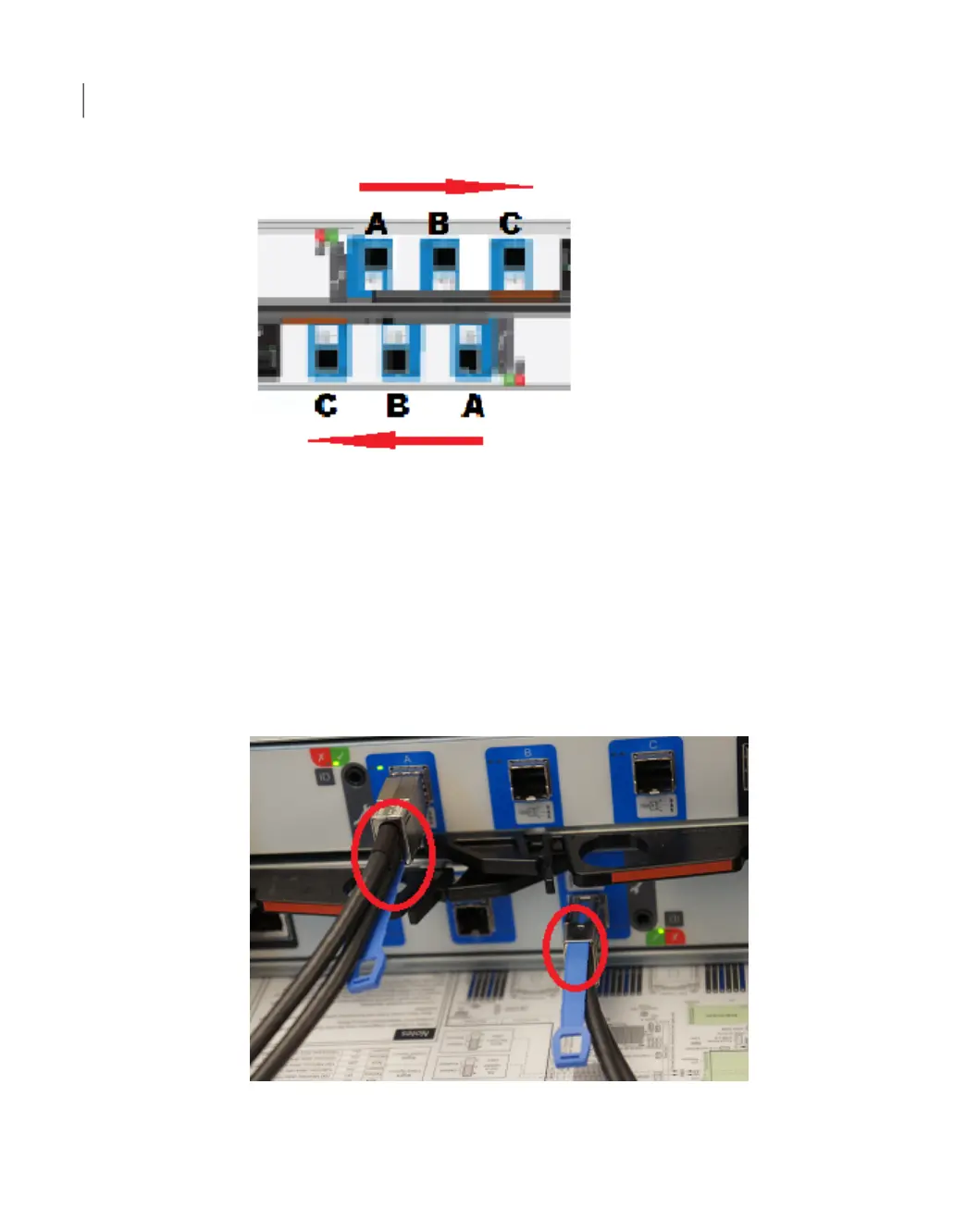

The SAS-3 ports on the bottom I/O module canister are labeled in reverse order;
C, B, and A from left to right.
The orientation of the blue clip that is attached to the SAS-3 cable connector is very
important.
Storage shelf orientation is as follows.
■ The blue clip in the connector in the top I/O module of each shelf must point
down.
■ The blue clip in the connector in the bottom I/O module of each shelf must point
up.
In the appliance the blue clips must point down.
Installation procedures
Understanding appliance and storage shelf connections
36
