Integral Cab Header Installation LD-16 Door Operator - Modernization
12 © Vertical Express
Single-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
9. Route the door operator harness to the Car Operating Panel (COP).
See Maintenance on page 82 and the Generic Wiring Diagrams on page A-16.
• Do not install the plugs on the operator door card or on the COP.
• Before moving the car, replace the door card cover.
10. Install the door operator to the adapter angle. See Figure 6 below and Figure 7 on
page 13.
a. Align the door track bolts with the keyslots in the track, and attach the door
operator to the adapter.
b. Verify that the door operator is level.
c. Verify that there is 5
1
/
4
" between the clear opening and the B dimension.
d. Use a
3
/
16
" Allen wrench to tighten down the bolts.
11. Install the door operator mounting angles.
12. Add bolts to brace the cab to the door operator back.
13. Check for plumb.
14. Verify that the track-to-sill is parallel.

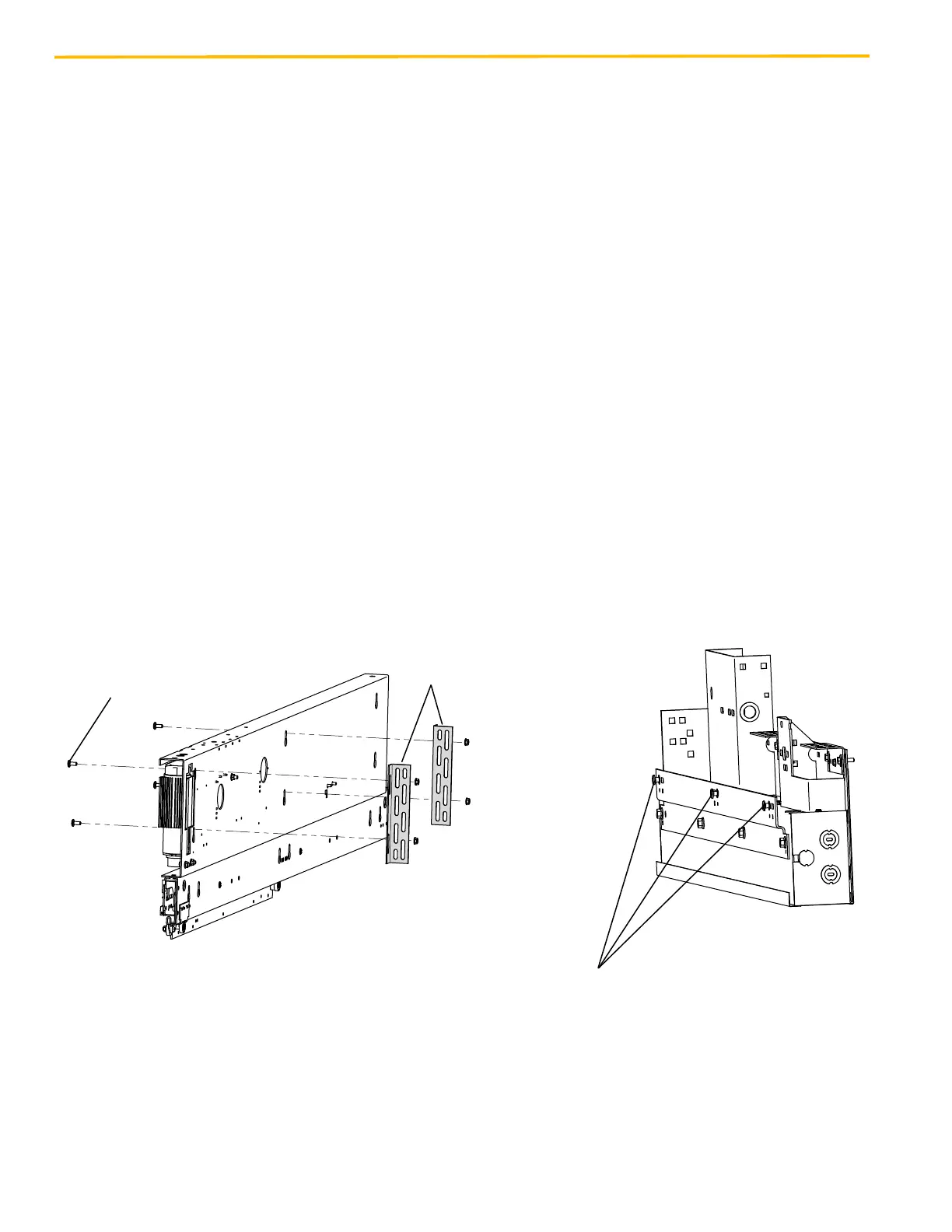

Figure 6 - Door Operator Machine Installation (1 of 2)
Door Track Bolts with Keyslots in Track
Door Operator Mounting Angles
