Vertiv | Liebert® CRV4 | User Manual 17
Mechanical Installation
3.1.4. Base Plate Piping Location and Dimensions

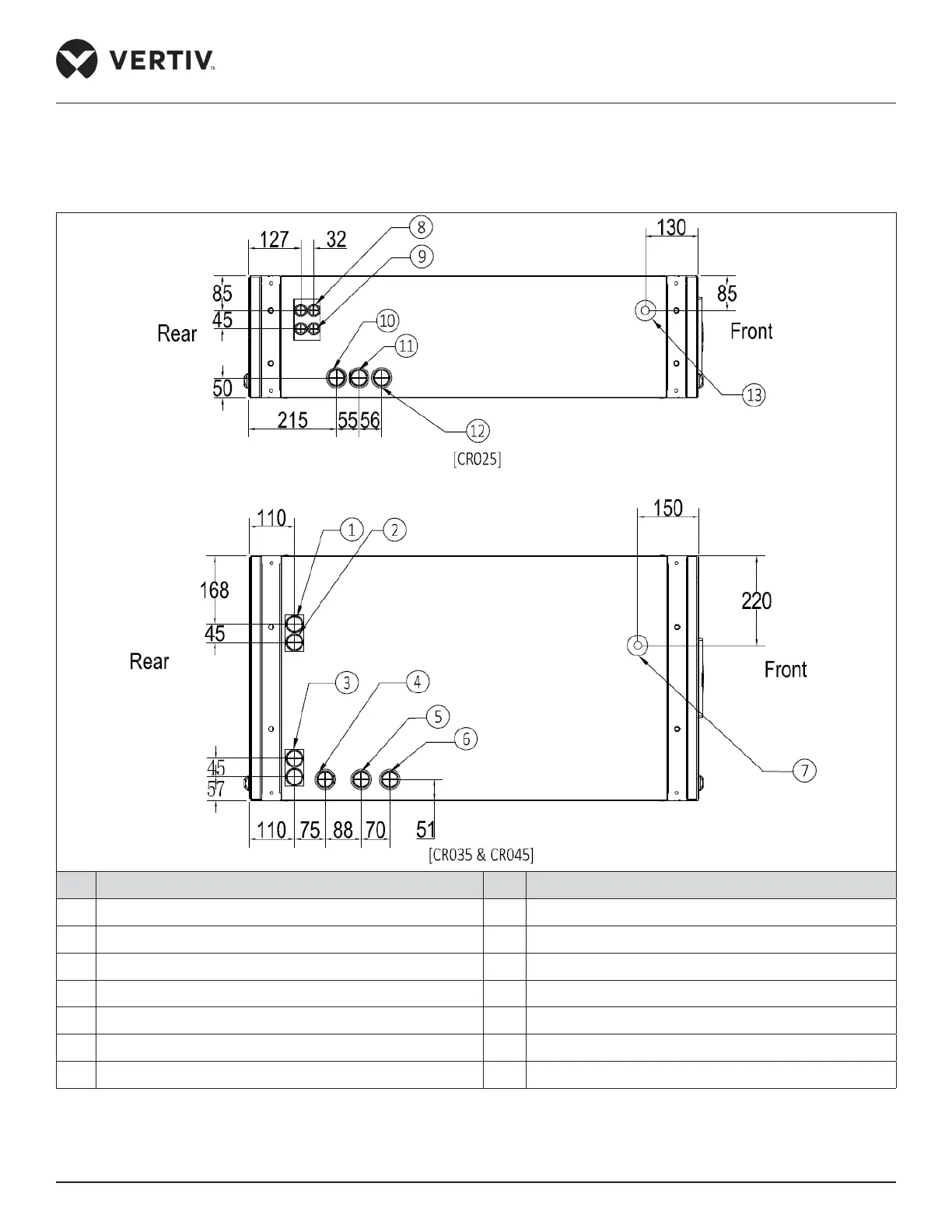

The inlets and outlets locations of the piping on the unit base plate are shown in Figure 3-5.
No. Description No. Description
1 Drain water hole of pump 8 Bottom cable inlet hole x3
2 Weight-drain water hole 9 Drain water hole of pump
3 Bottom cable inlet hole x2 10 Exhaust air hole of compressor
4 Exhaust air hole of compressor 11
Liquid inlet hole of evaporator
5 Liquid pipe inlet hole of evaporator 12 Weight-drain water hole
6 Water inlet hole of wet film humidifier 13 Water inlet hole of electrode humidier
7 Water inlet hole of electrode humidifier
Figure 3-5 Location of the Piping Connection on the Base Plate
