Electrical Installation
Table 4-2 Full Load Current [unit - ampere (A)]
Model
Standard
Model
Standard Model
with Electrical
Heater
Standard Model
with Humidier
Standard Model with
Electrical Heater and
Humidier
CR025R/HA 21.7 22.7 23.4 23.4
CR035R/HA 29.3 36.9 30.8 36.9
CR045R/HA 39.1 44.3 39.1 44.3
4.2.3. Connecting the Control Cables
The location of the terminal block for on-site cable connections is shown in Figure 4-1. The enlarge view of the
terminals are shown in Figure 4-3.

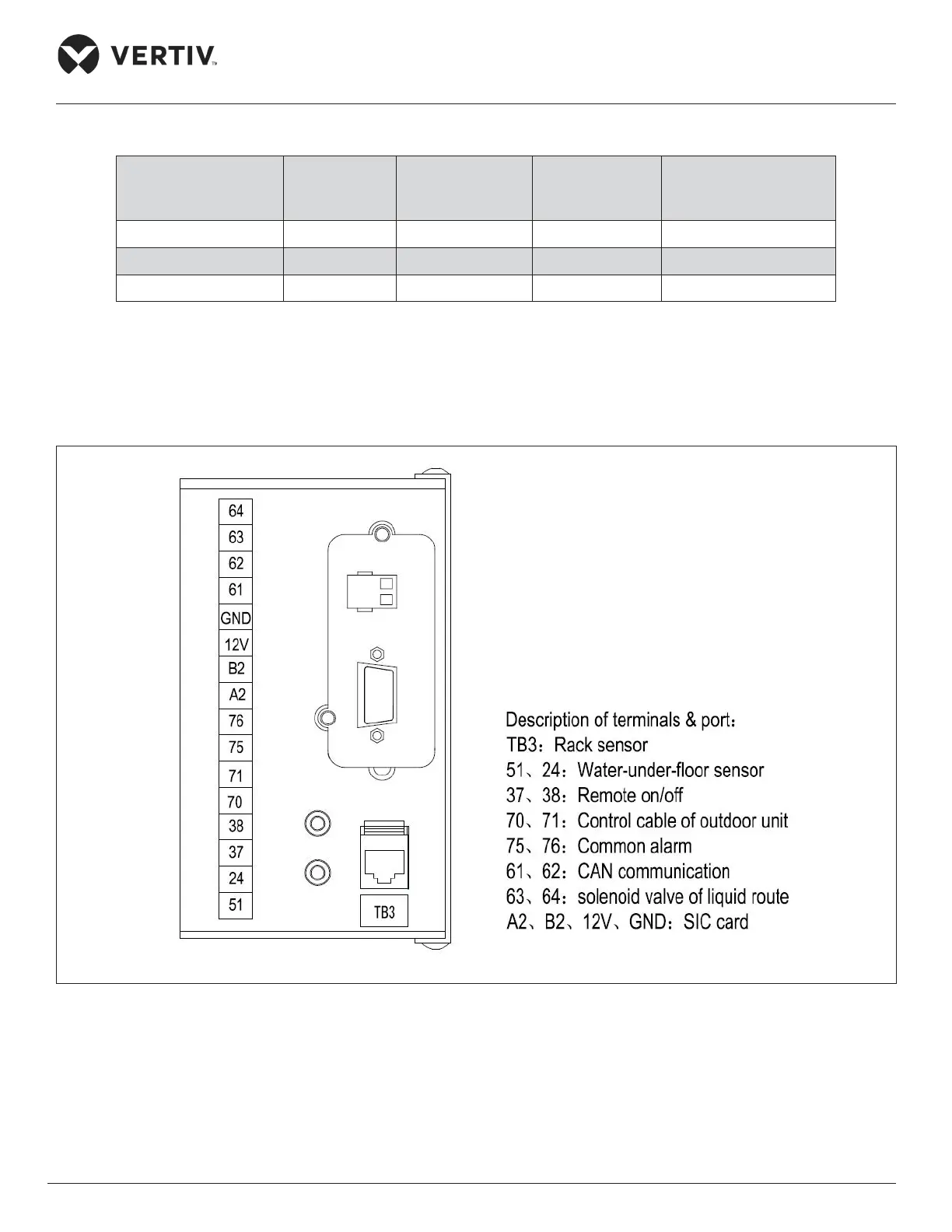

Figure 4-3 The Enlarged View of the Terminals
