Vertiv | Liebert® CRV4 | User Manual 81
Micro-Controller (Text-screen)

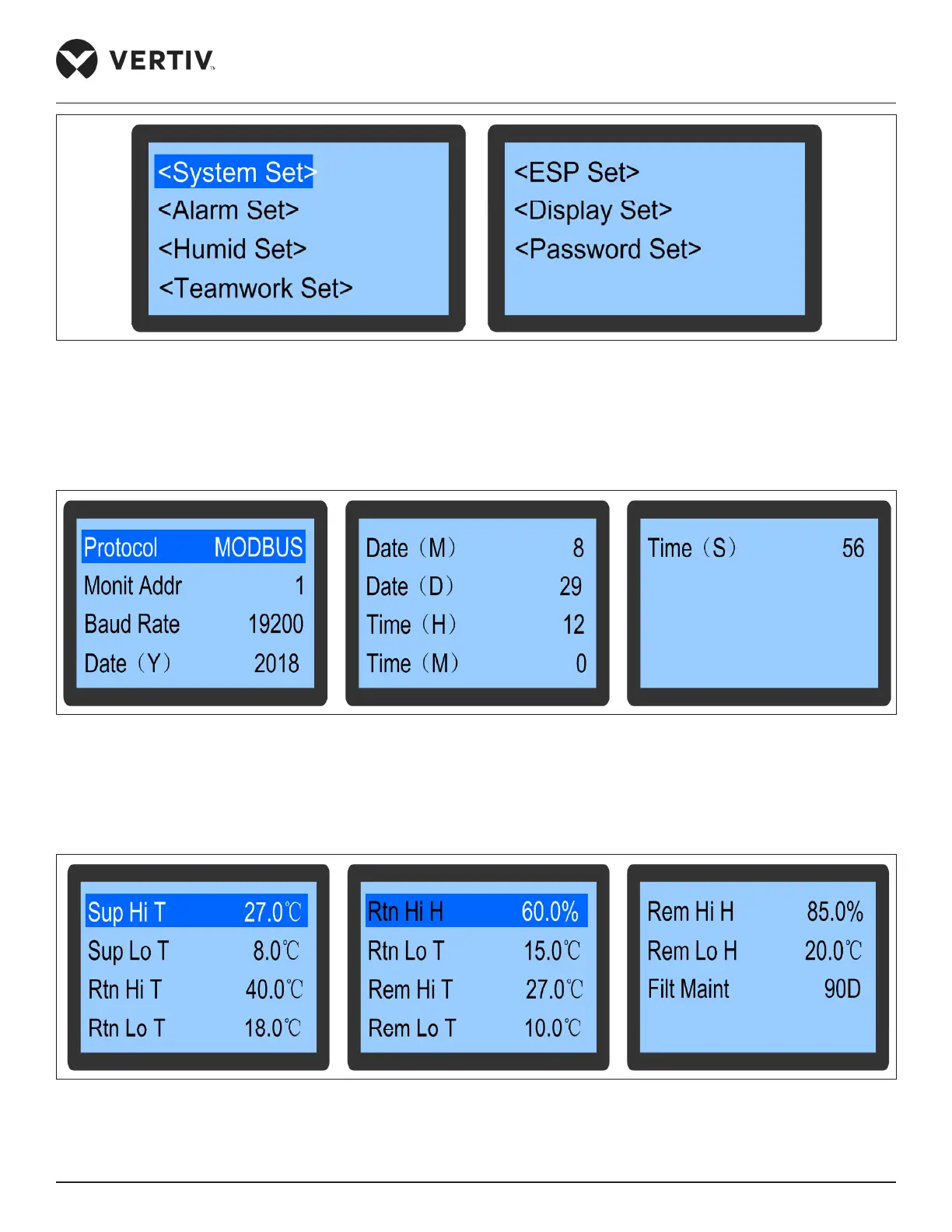

Figure 7-17 Parameter Set Screens
• System Set
The System Set menu interface screens are shown in Figure 7-18. The monitoring protocol, monitoring address,
baud rate, display address, and date and time settings can be changed in the system set menu.
Figure 7-18 System Set Interface Screens
7.6.6. Alarm Set
The Alarm Set menu interface screens are shown in Figure 7-19.
Figure 7-19 Alarm Set Screens
