3.1.5. Top Plate Piping Locations & Dimensions

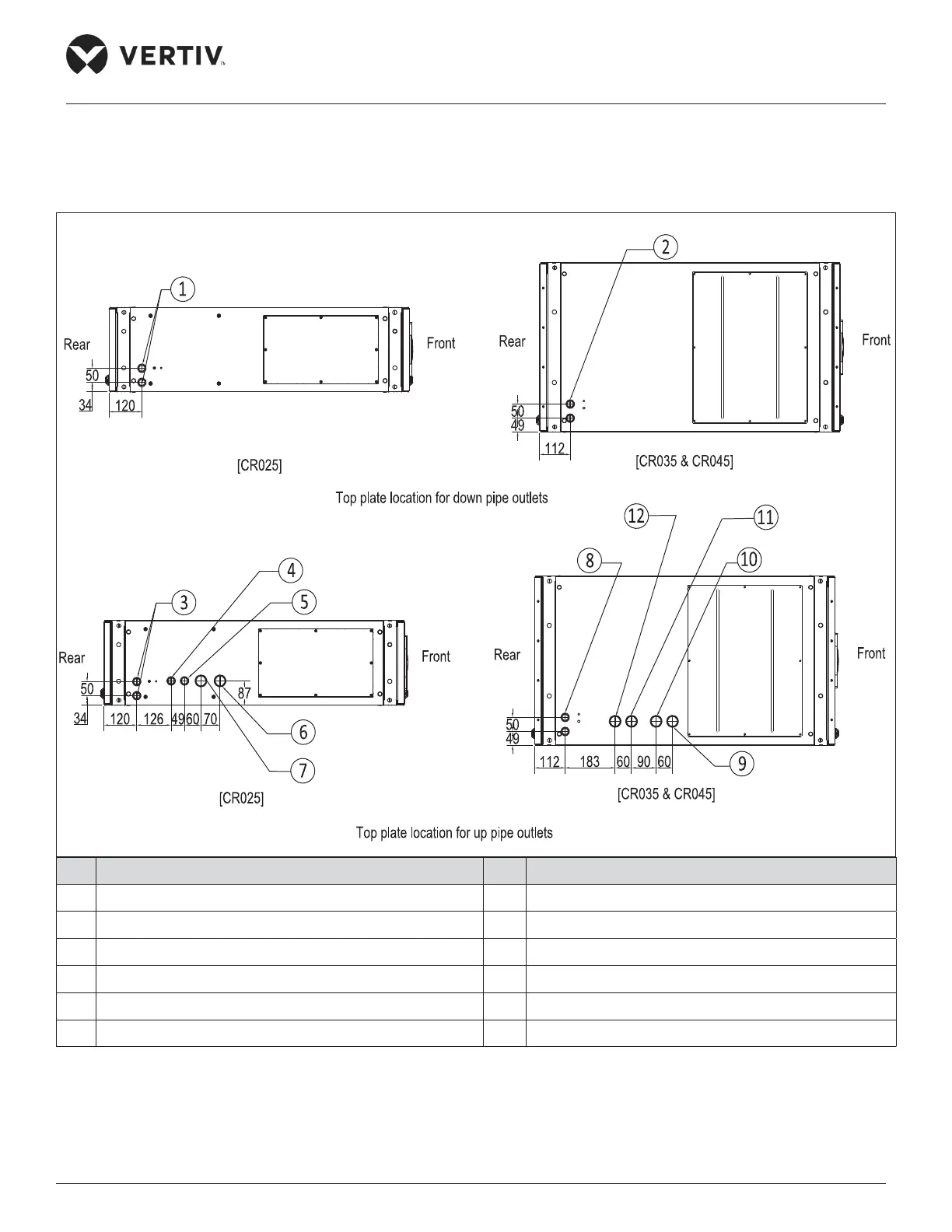

The locations of the pipe inlets and outlets on the unit top plate are shown in Figure 3-6.
No. Description No. Description
1 Top cable inlet hole 7 Drain water hole of pump
2 Top cable inlet hole 8 Top cable inlet hole
3 Top cable inlet hole 9 Water inlet hole of humidier
4 Exhaust air hole of compressor 10 Drain water hole of pump
5
Liquid inlet hole of evaporator 11 Liquid inlet hole o evaporator
6 Water inlet hole of humidifier 12 Exhaust air hole of compressor
Figure 3-6 Location of the Piping Connection on the Top Plate
