Vertiv | Liebert CRV+ | User Manual 24
Removing the Feet and Fixing cabinet
Before explaining the task of removing the feet and eventually fixing the cabinet, it is vital that
2 persons will be required for this operation to avoid personal injury and cabinet damage.
Following are the instructions to be followed for removing the feet and fixing the cabinet:
Removing the feet
Use a moveable wrench to loosen the fixing nuts on the four fleet bolts in a clockwise sequence.
Rotate the hexagon bolts on the bottom of the feet clockwise till the feet drops from the cabinet
frames.
Fixing the cabinet
The cabinet provides two holes (diameter: 13.5 mm) respectively on its top, bottom, front, and rear as
depicted in Figure 2-14.

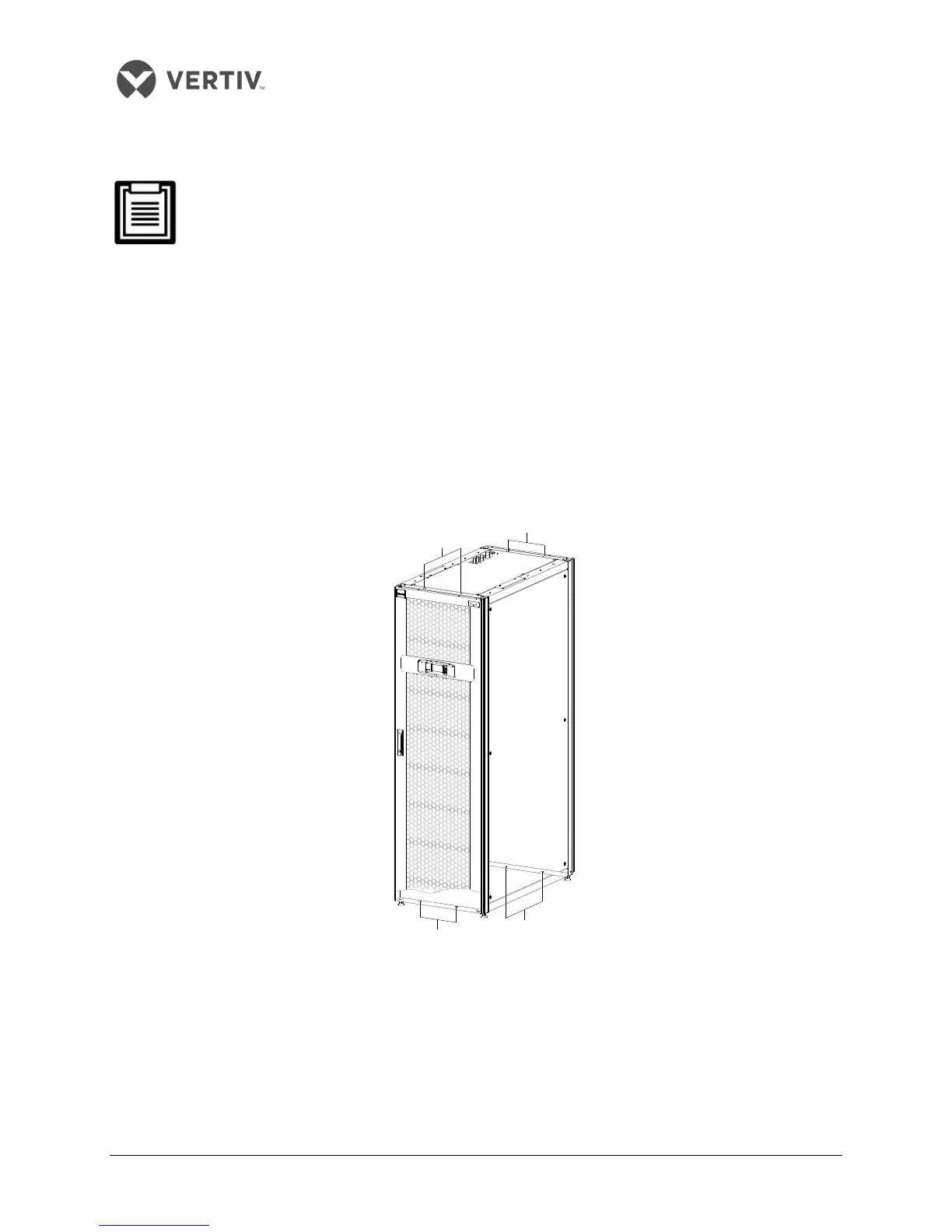

Figure 2-14 Fixing holes of the cabinet
Install bolts in the four holes at the bottom to fix the cabinet onto the floor bracket of the machine
room.
Install bolts in the four holes at the top to fix the cabinet to connect the cabinet with the top
bracket of the machine room.
Top fixing hole
Top fixing hole
Bottom fixing hole
Bottom fixing hole
