Vertiv | Liebert CRV+ | User Manual 25
Cabinet Connection
The cabinet connectors come along with the accessories. Connect the unit with adjacent cabinets using
the cabinet connectors. The following section depicts the procedures for connecting the cabinet:
Before connecting the cabinet, level the cabinet as mentioned in the earlier section (Refer to
section Leveling the cabinet for in-depth information).
Loosen the fixing screw of the cabinet connector on the frame of the cabinet.
Rotate the cabinet connector 90 ° to the horizontal position. Use M5 countersunk head screws to
fix it on the cabinet frame. (Side of the door lock) as depicted in Figure 2-15.

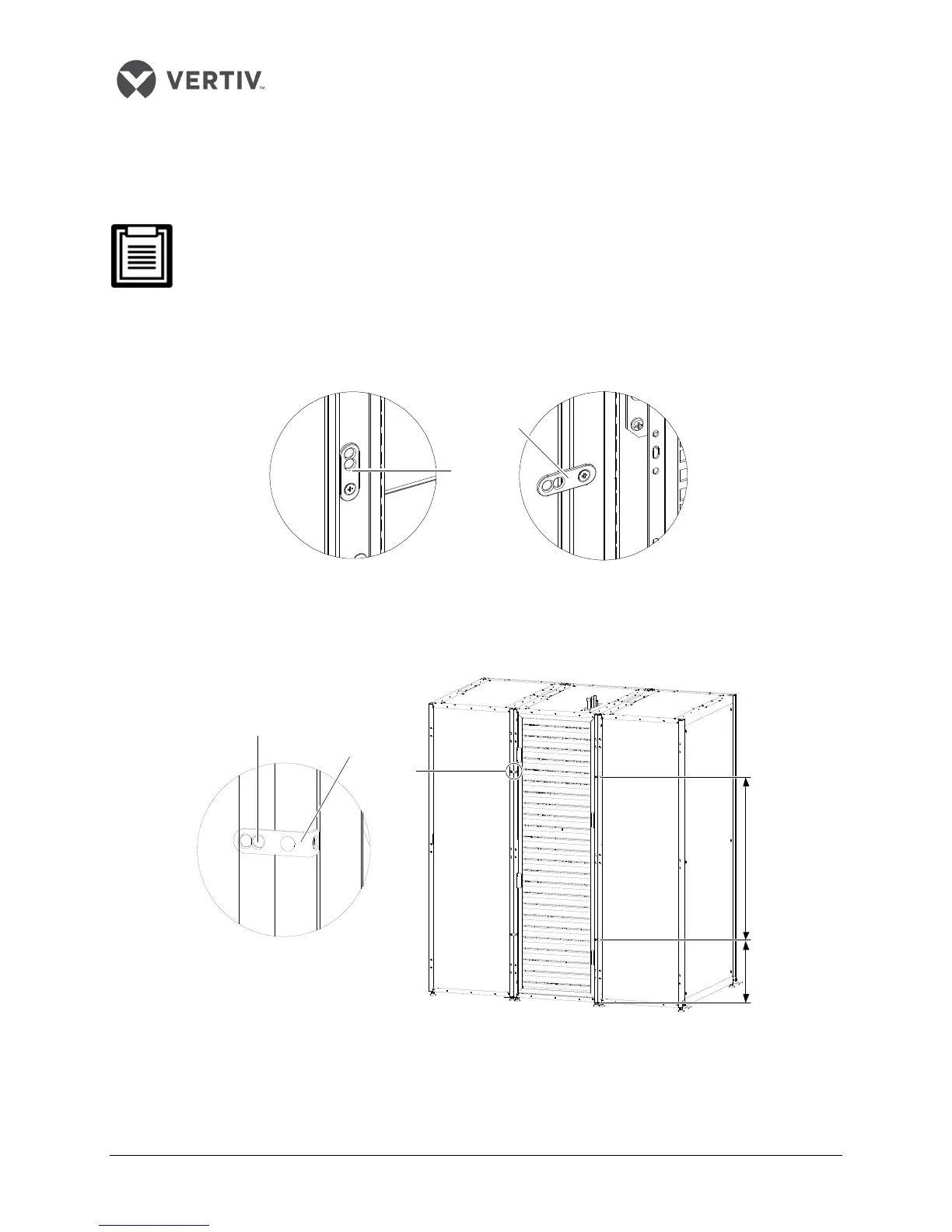

Figure 2-15 Rotating the Cabinet connector
Use the M5 countersunk head screws to fix the cabinet connector (L-shaped) in the installation
holes of the cabinet frame (side of the hinge) and rack frame adjacent to the cabinet as depicted
in Figure 2-16.
Figure 2-16 Schematic diagram for connecting the cabinet
Install the other 6 cabinet connectors based on the same method.
Cabinet
connector
Cabinet
connector
A
A amplified
Mounting screw
GB819_1_2000_M5x12
Cabinet connector
416 1100
