6 & 8 FAN HEAT REJECTION QUIET-LINE MODELS
Form No.: DPN001040_REV4

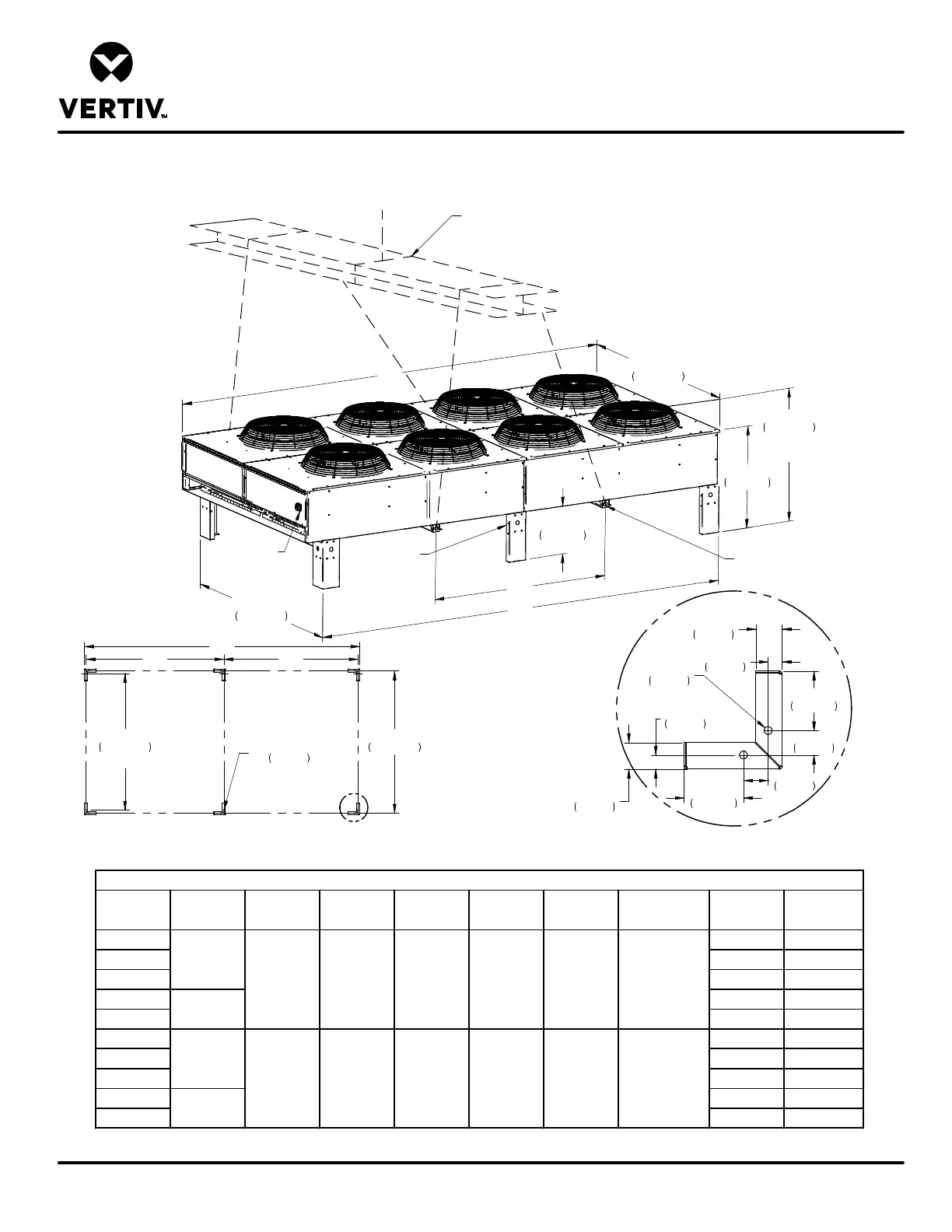

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT DRYCOOLER
Unit Anchor Plan
C
A B
O
1/2"
13mm
Anchor Bolts (Typ.)
A
DETAIL A
4 1/4"
108mm
1"
25mm
4 1/4"
108mm
1"
25mm
Notes:
1. 4 legs furnished for 6 fan models
6 legs furnished for 8 fan models
2. A clearance of 36" (914mm) is
recommended on all sides for
proper operation and component access.
-620 27 (102.2) 1780 (808)
-650 33(124.9) 1830 (831)
-700 40 (151.4) 1880 (854)
-347 27 (102) 1780 (808)
-356 39.3 (149) 1880 (854)
-790 35 (132.5) 2250 (1022)
-880 44 (166.5) 2330 (1058)
-940 52 (196.8) 2430 (1103)
-453 35 (132) 2250 (1022)
-498 52.6 (199) 2430 (1103)
Standard
Quiet-Line
Standard
Quiet-Line
Drycooler Physical Data
Liebert
Model No.
Qty. of Fans
A
in. (mm)
B
in. (mm)
C
in. (mm)
D
in. (mm)
E
in. (mm)
Coil Internal
Vol. Gal (L)
Dry Wt.
lbs. (kg)
Drycooler
Type
6
8
122 (3099) N/A 124 (3150) 131-1/2 (3340)
82 (2083) 80 (2032) 164 (4166) 70 (1778) 171-1/2 (4356)
59 (1499)
87 1/8"
2213mm
E
37 7/8"
962mm
43 1/8"
1095mm
TOP OF
FAN GUARD
18"
457mm
C
D
86 3/4"
2203mm
Recommended rigging and
spreader bars required for
installation. Rigging and bars
not supplied by Liebert
Disconnect
switch handle
Center leg
provided on
8 fan models
only
Location of holes and support for rigging
O 1-1/2" (38mm) Typ. (4) places
1 7/8"
48mm
1 3/4"
44mm
1 7/8"
48mm
1 3/4"
44mm
O
9/16"
14mm
Typ.
84 3/4"
2154mm
81 5/16"
2065mm
Typ.
