Vertiv™ | Liebert® EXM
™
50-250kVA, 480V, 60Hz User Manual | 84

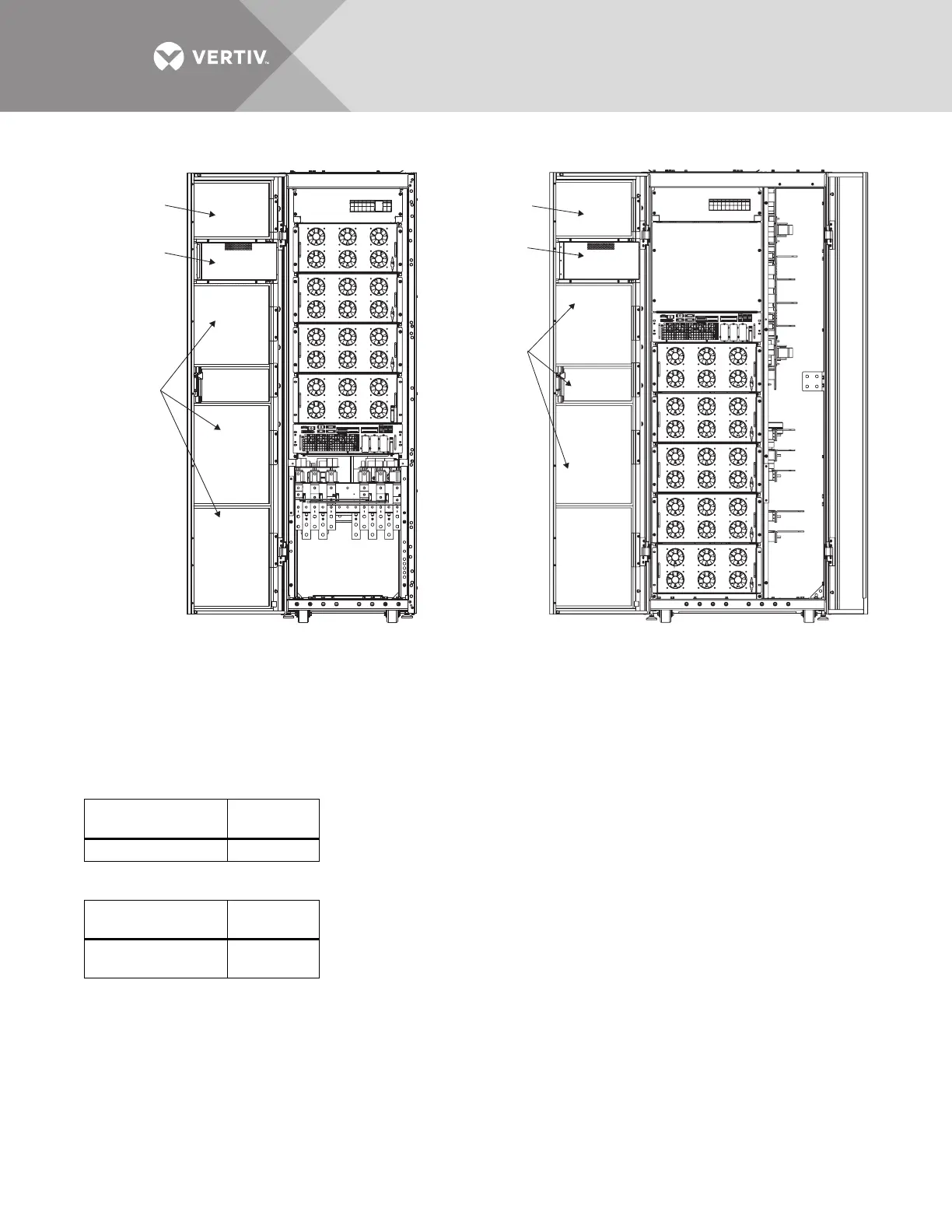

Figure 35 Air filter replacement
8.3.3 Torque Requirements
All electrical connections must be tight.
Tables 30 through 31 provide the torque values for the connections in the UPS and batteries. Use
these values unless the equipment is labeled otherwise.
8.4 Detecting Trouble
It is important that the operator check the instrument readings if abnormal equipment
performance is suspected. Any metered value that differs appreciably from normal could mean an
impending malfunction, and should be investigated.
Table 30 Busbars (for power wiring)
Bolt Shaft Size
Torque
lb-in (Nm)
1/2" (M12) 428 (48)
Table 31 Terminal block with compression lugs (for control wiring)
AWG Wire Size
or Range
Torque
lb-in (Nm)
#22 - #14
3.5 to 5.3
(0.4 to 0.6)
Control
Panel
Replaceable
Air Filter
Replaceable
ir Filters
Control
Panel
Replaceable
Air Filter
Replaceable
Air Filters
50-200kVA Unit 250kVA Unit
