Enclosure G - Ultrasonic Humidier
G - 2Liebert
®
PDX, EconoPhase Version - UM - 265133 - 29.08.2019

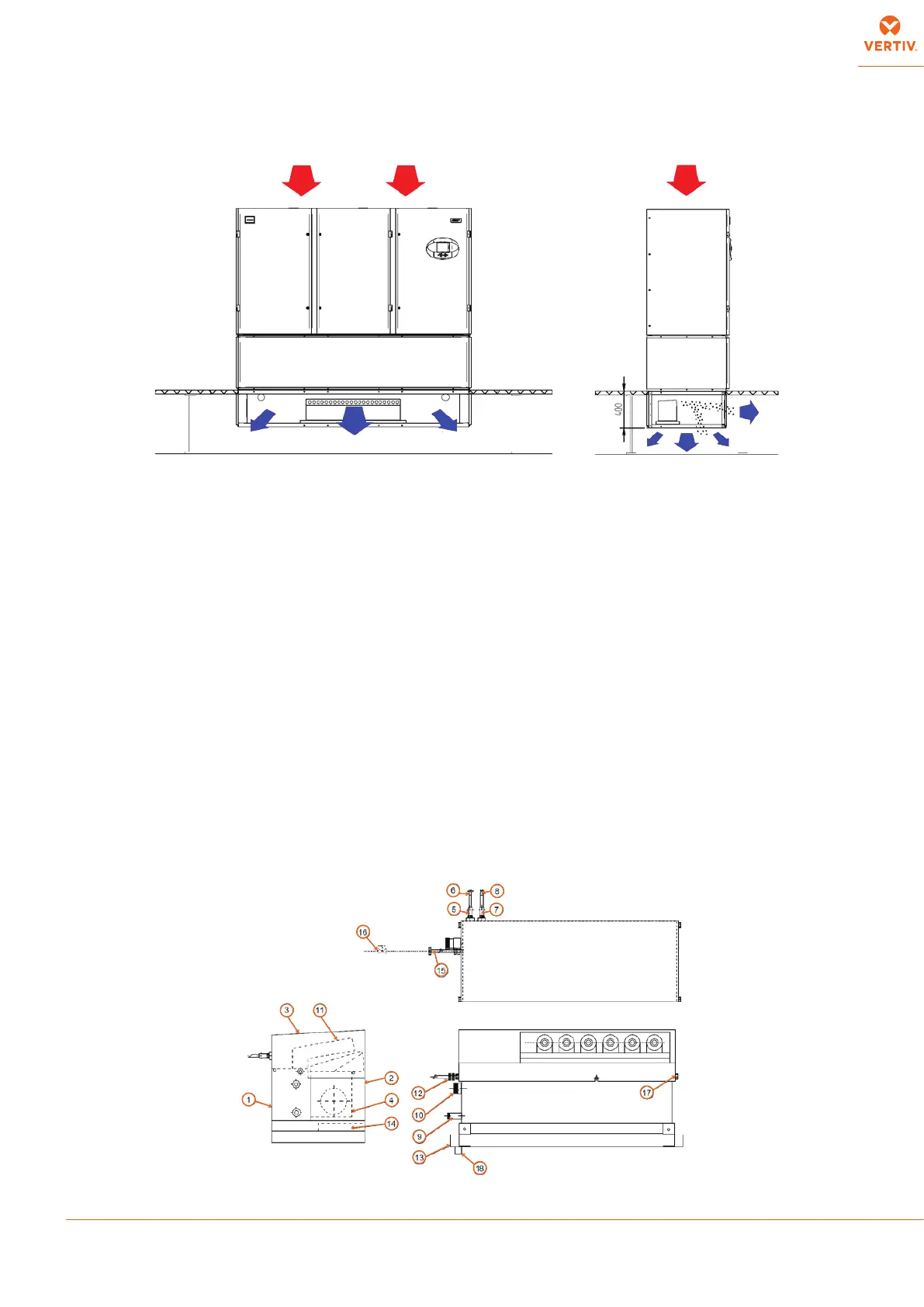

Fig. 2 - Ultrasonic humidier module in the raised oor, frontal and lateral views
Supply Water.
• Supply fully demineralized water with conductivity<5 μS/cm. If demineralized water is not available, provided mineralizer (not
supplied);
• Water pressure from 50 kPa to 500 kPa;
• Water temperature from 8° C to 40° C;
• Dust or dirt must not get into the water lines;
Refer to HSU08RM000 manual for details.
Drain Water.
• The drain water contains the same substances dissolved in the supply water, however in larger quantities;
• It is not toxic and can be drained into the sewerage system, category 3, EN 1717;
• Dispose the drain hose into an ordinary drainage network (the drainage network should have a siphon).
Refer to HSU08RM000 manual for details.
G. 2.1 - Infrared humidier components
1. Humidier
2. Fan case
3. Mist guide cover
4. Fan
5. Metal plug
6. Cable
7. Metal plug
8. Cable
9. Water drain
10. Safety overow
11. Mist guide pipe
12. Ring and nut
13. Humidier drain pan
14. Air lter
15. Water supply connection
16. Check valve (to be provided by the Customer)
17. Damper
18. Humidier drain pan water drain
Fig. 3 - The Ultrasonic humidier and its components
