Vertiv | SmartAisle2 | User Manual 16
Installation

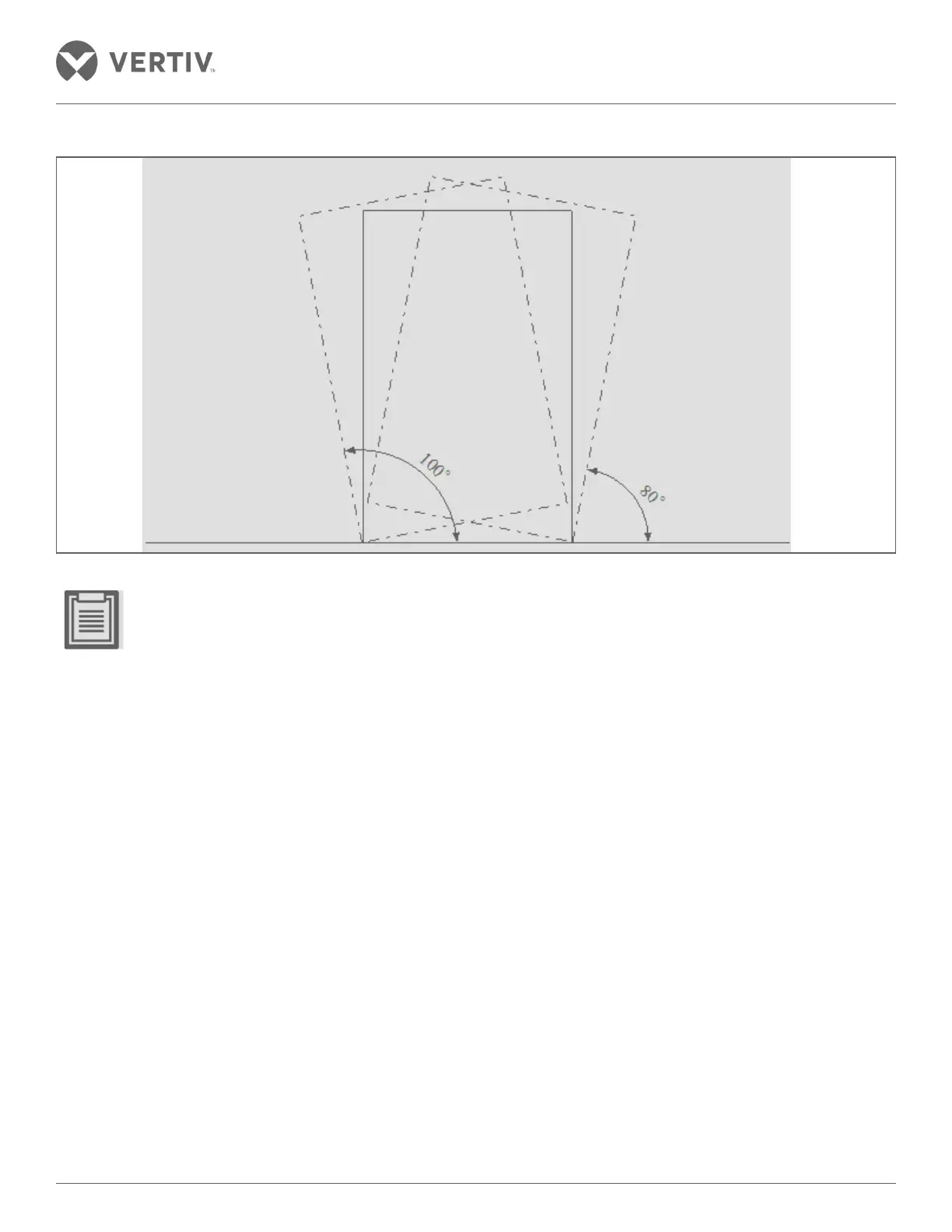

Figure 2-4 Inclination while transporting
• The devices should remain upright; do not place the unit outdoors.
• Use a forklift or a pallet jack with the adjustable fork arms open to the widest distance, so that the device is
placed just below the pallet. Further, ensure that the fork arm length matches the length of the device.
Packaging material
All the material used in the packaging enclosure is recyclable. Either they can be retained for future use or they
can be disposed appropriately.
For China, the packaging is done in a carton box. For international locations, a wooden box is utilized.
Following are the steps for unpacking the carton box:
1. The product package assembly should be done on an open, solid horizontal surface.
2. During disassembly, open the carton belt with a knife.
3. Remove the device carefully.
4. Carefully, dismantle the film and packaging material on the product with a utility knife.
