Vertiv | SmartAisle2 | User Manual 20
Installation

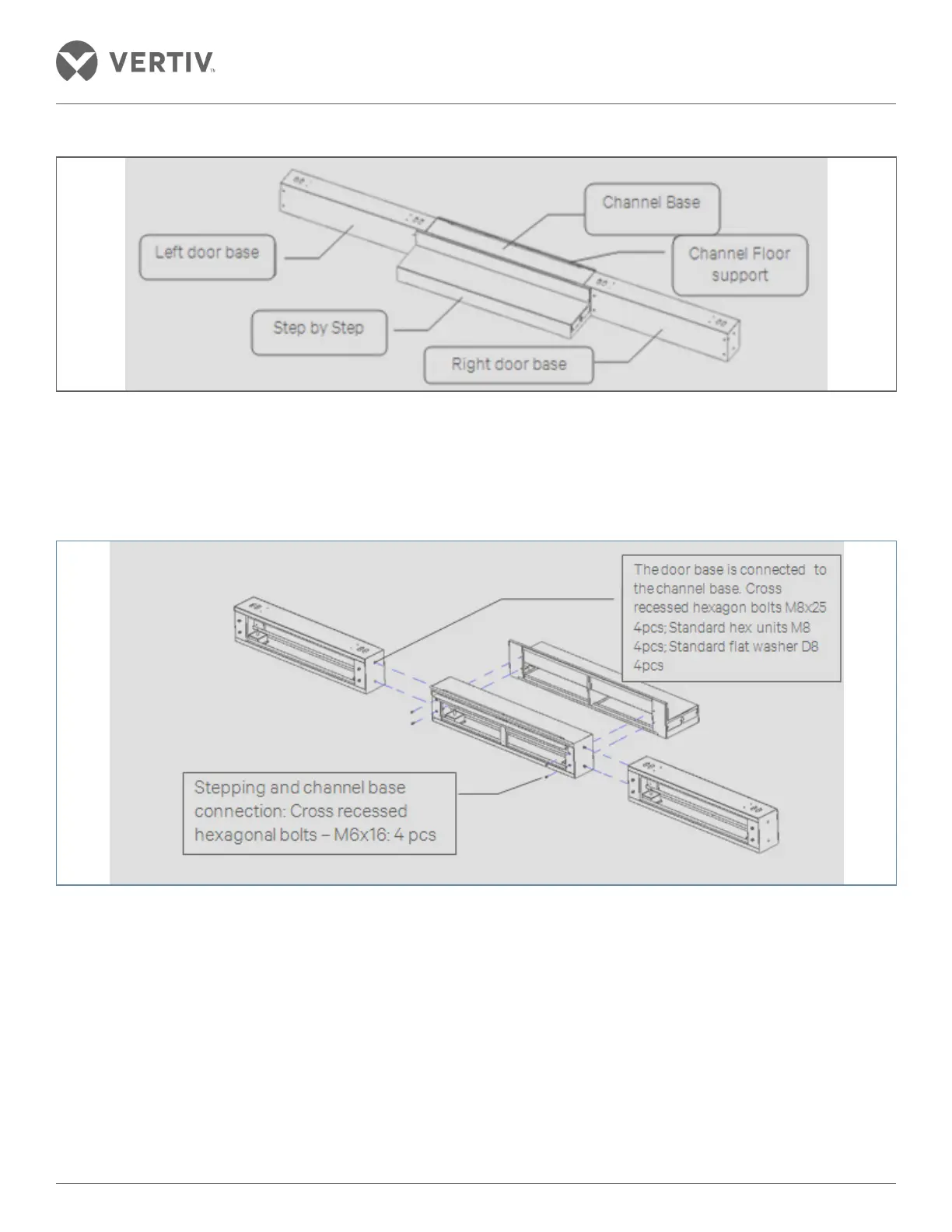

Figure 2-5 Door comprising the base
Door assembly base
• Figure 2-6 shows the base assembly with a door fastener.
Figure 2-6 Door assembly base
• Base is mounted inside the channel floor support. Figure 2-7 shows the support member mounted within the
floor channel.
