Installation
No. Part Name Icon Quantity Remark
11
A pair of auxiliary light
sensor
1
12
Sensor door magnet
(with door unit)
1
13
Glass hanging folders
(pre-installed)
4
14
Glass stripe (pre-
installed)
2
15
Decoration system
preventing the (pre-
installed)
2
Electric pan mounted door frame and the door pocket of the structure
• The structural parts which are provided along with the doors have to be removed. These parts are kept to
prevent deformation of the transport. The left and right doors are fitted with an incoming frame (with the
cover and base). The front pillar on the outer end are first mounted on the left and right doors. The front cover
housing the silver lintel needs to be removed.

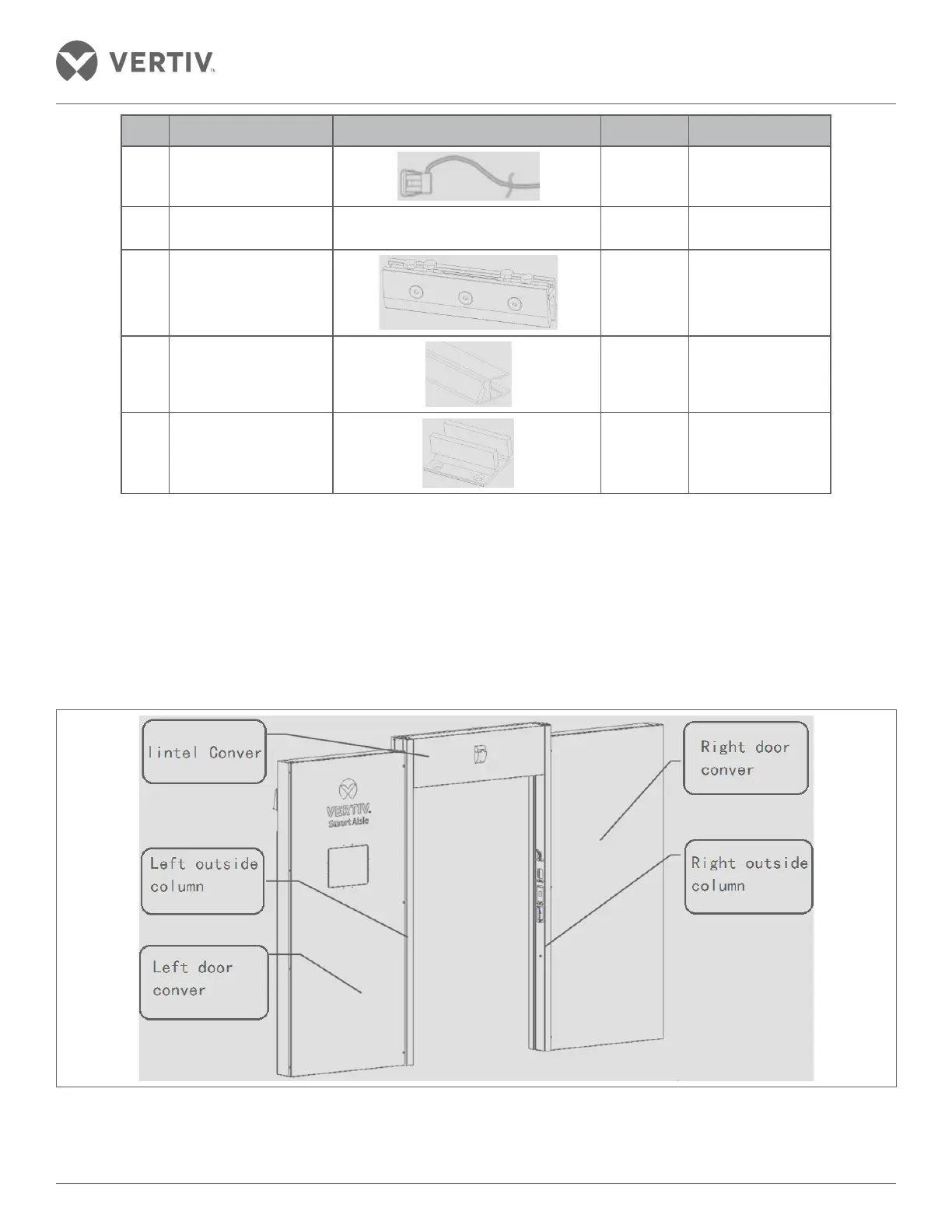

Figure 2-24 Removing the structural parts
