Installation

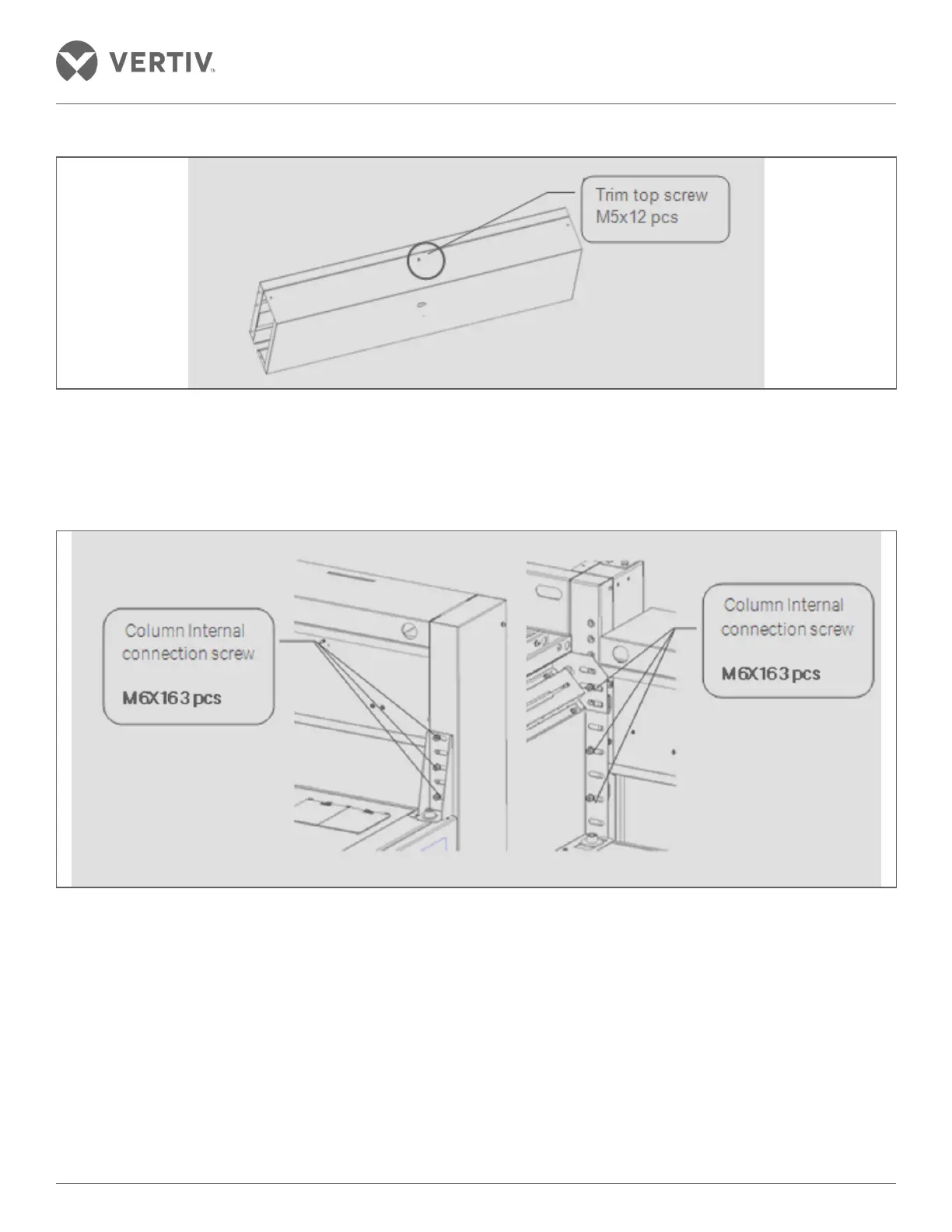

Figure 2-27 Removing the lintel cover
• The cartridge door frame is connected to the top plate and cabinet while the outer door top box is connected
to the cabinet by fixing the top adapter. A top end surface of the inner side of the sunroof bracket is
connected firmly by using at least three connecting surface mounting M6 bolts.
Figure 2-28 Top of the door box is connected and fixed
To Next Page
