Installation
• Connecting the door frame and door pocket base/floor: if the base is present, the bottom of the door frame is
connected to the base box using M6x16 screws. If the base is not present or not used, the bottom of the door
frame is directly connected to the box floor using hex st 5.5X25 flange tapping screws fixed to the floor.

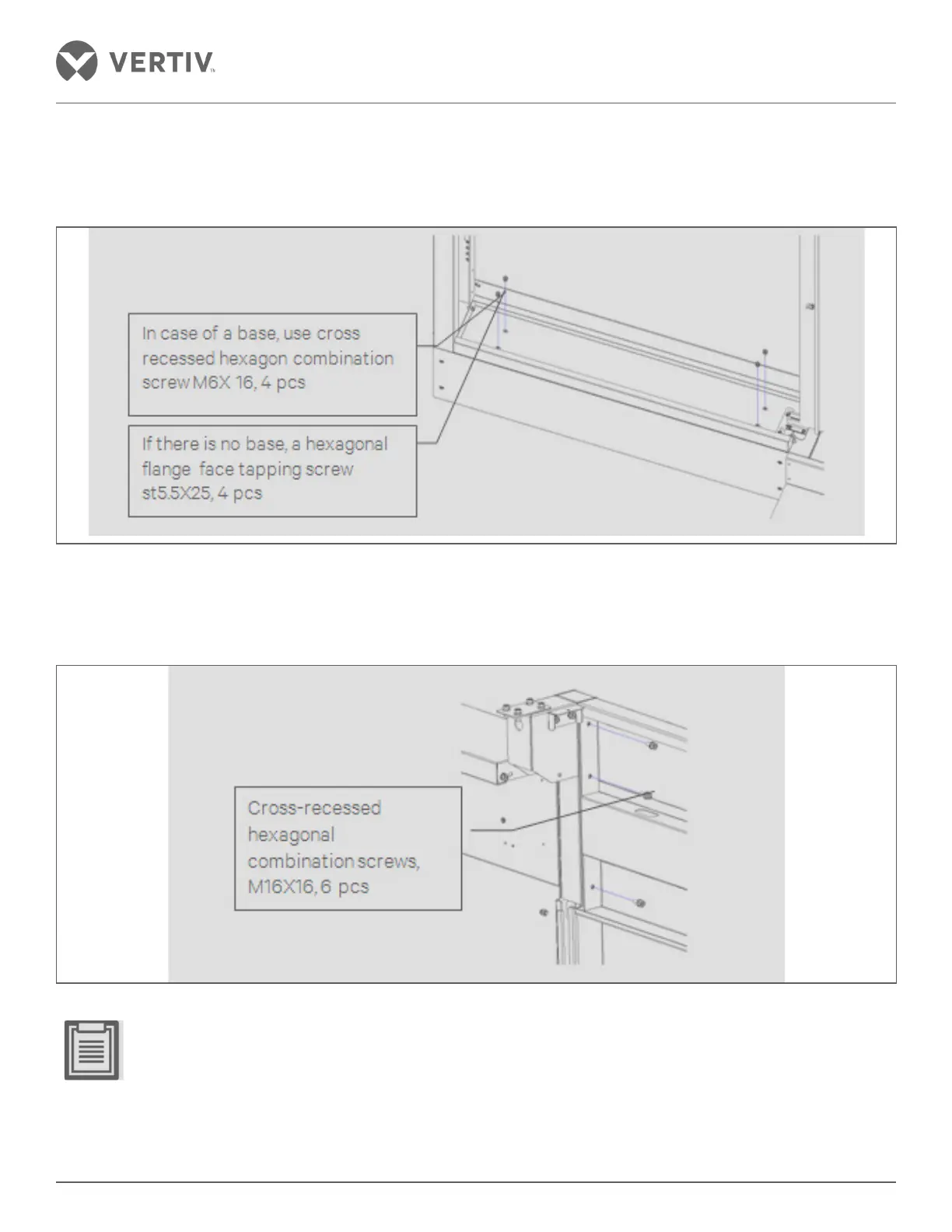

Figure 2-29 Bottom of the door connected and fixed
• Connecting the cartridge and the door lintel framework: the lintel and the door post connection box, each to
the left and right sides are fastened by six M6X16 screws.
Figure 2-30 Lintel and door pocket is connected and fixed
• Removal of structural parts should be properly preserved after the demolition to avoid scratches.
• Remove the fastener assembly based on the classification structure to avoid losing or ambiguity.
• Cassette door frame and the door base connection screws (the screws of the cartridge frame are not the
same regarding the floor). Therefore, this process must be done with utmost care and precision.
