Vertiv | SmartAisle2 | User Manual 42
Installation

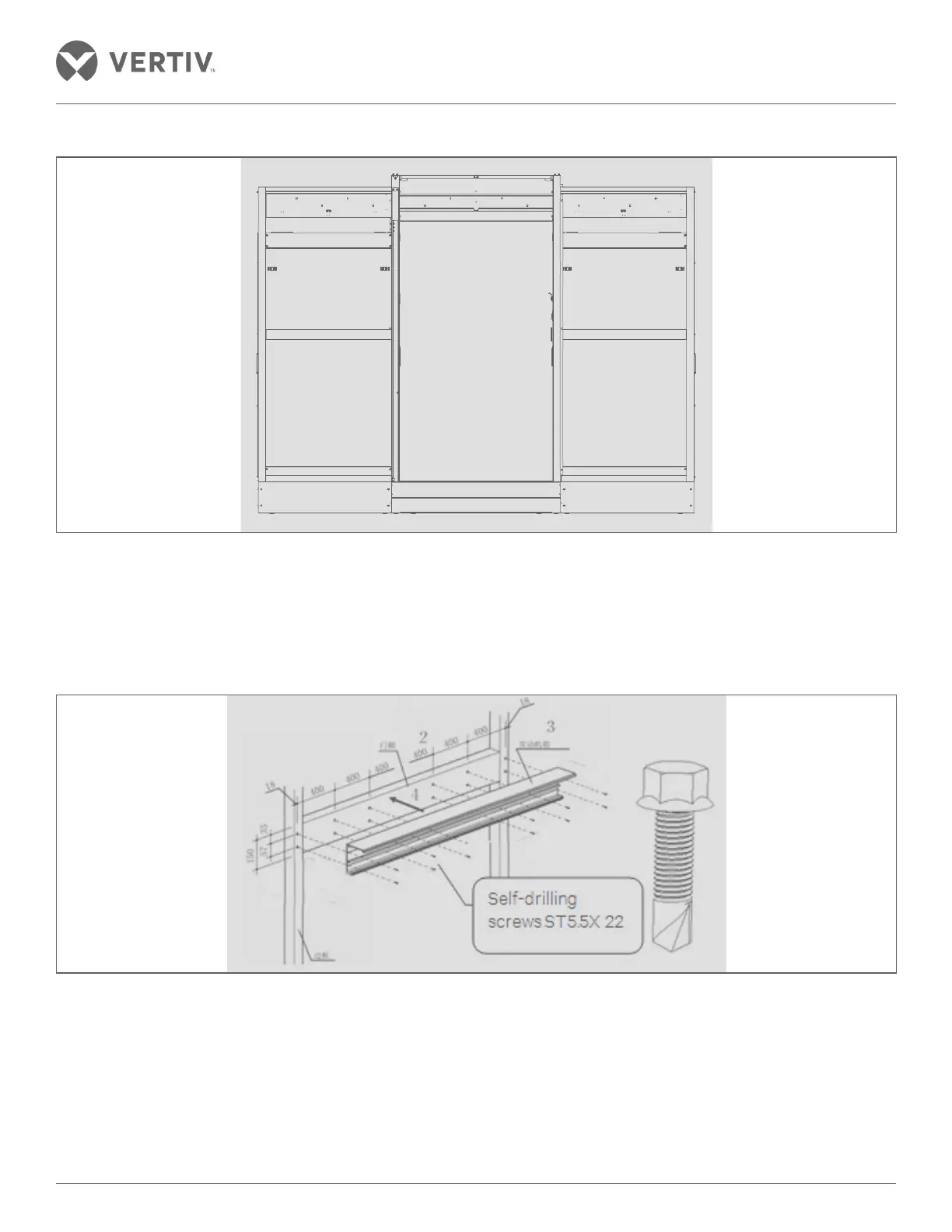

Figure 2-31 End door frame mounted state of the cartridge
• Mounting rail: Usually divided into two sections of equal length of the total length of 3100 mm rail by self-
tapping drill screw ST5 .5X22 from the rail to the frames. Both originate from the engine case during the
installation process and uniform spacing of screws less than 400 mm is maintained while firmly mounting to
the upper and lower rows.
Figure 2-32 A schematic rail mounting
