Vertiv | SmartAisle2 | User Manual 62
Installation
2. The door frame connects with the cabinet and the top board. The top of the door box is connected with the
top of the cabinet via the adapter. The inside of the top is connected with the section of the skylight support.
At least three M6 bolts are installed on the connecting surface.

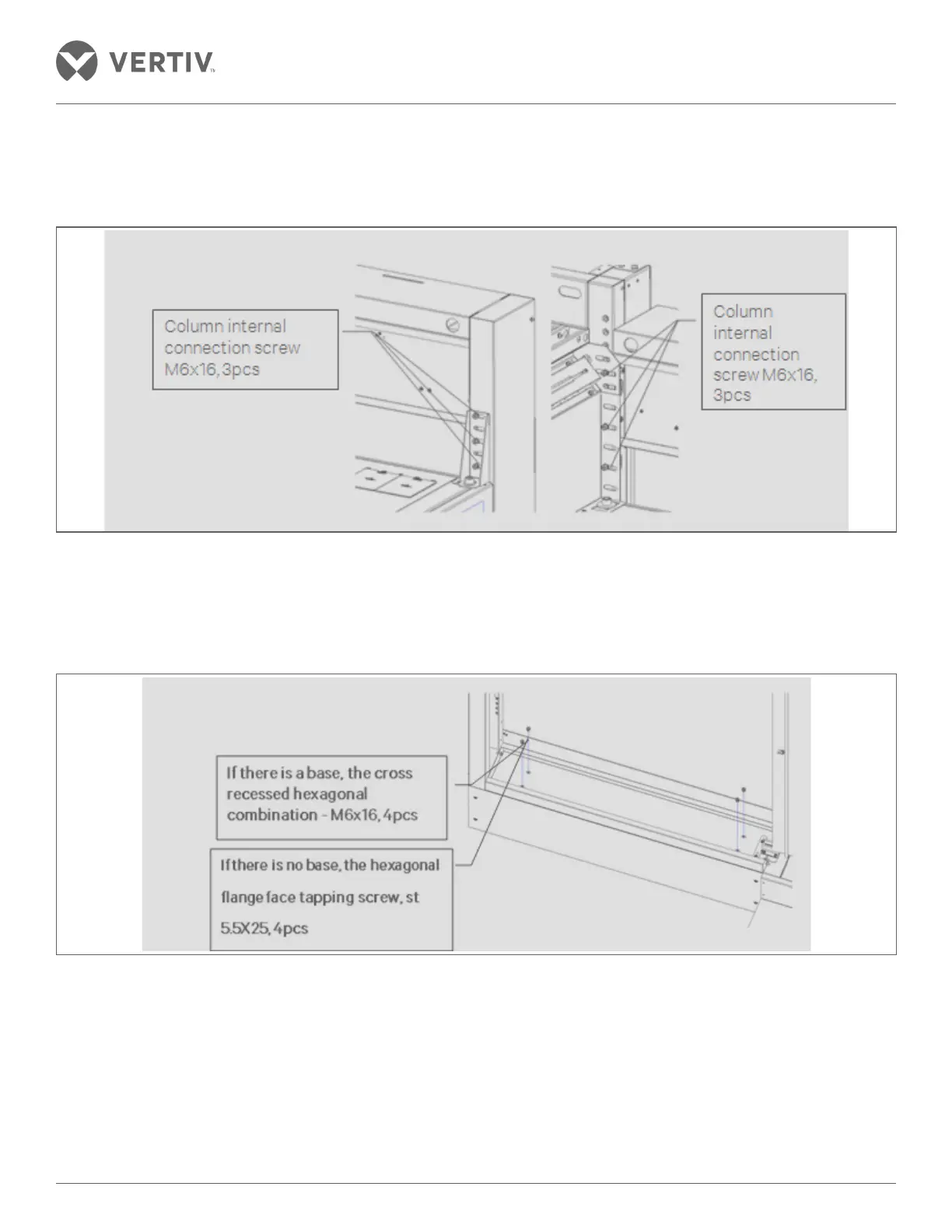

Figure 2-61 Top of the door box is connected and fixed
3. Door frame with the door base/floor connection: The door base and the bottom of the door frame are
connected to the base with M6x16 screws; door base and the bottom of the door frame are directly connected
to the floor with the use of a hexagonal flange. If there is no base, the self tapping screws ST5.5x25 are used.
Figure 2-62 The bottom of the door box is connected and fixed
4. Lintel and the door frame connection frame: lintel and the door column are connected to the left and right
sides by three M6x16 screws, a total of six.
