Vertiv | SmartAisle2 | User Manual 70
Installation

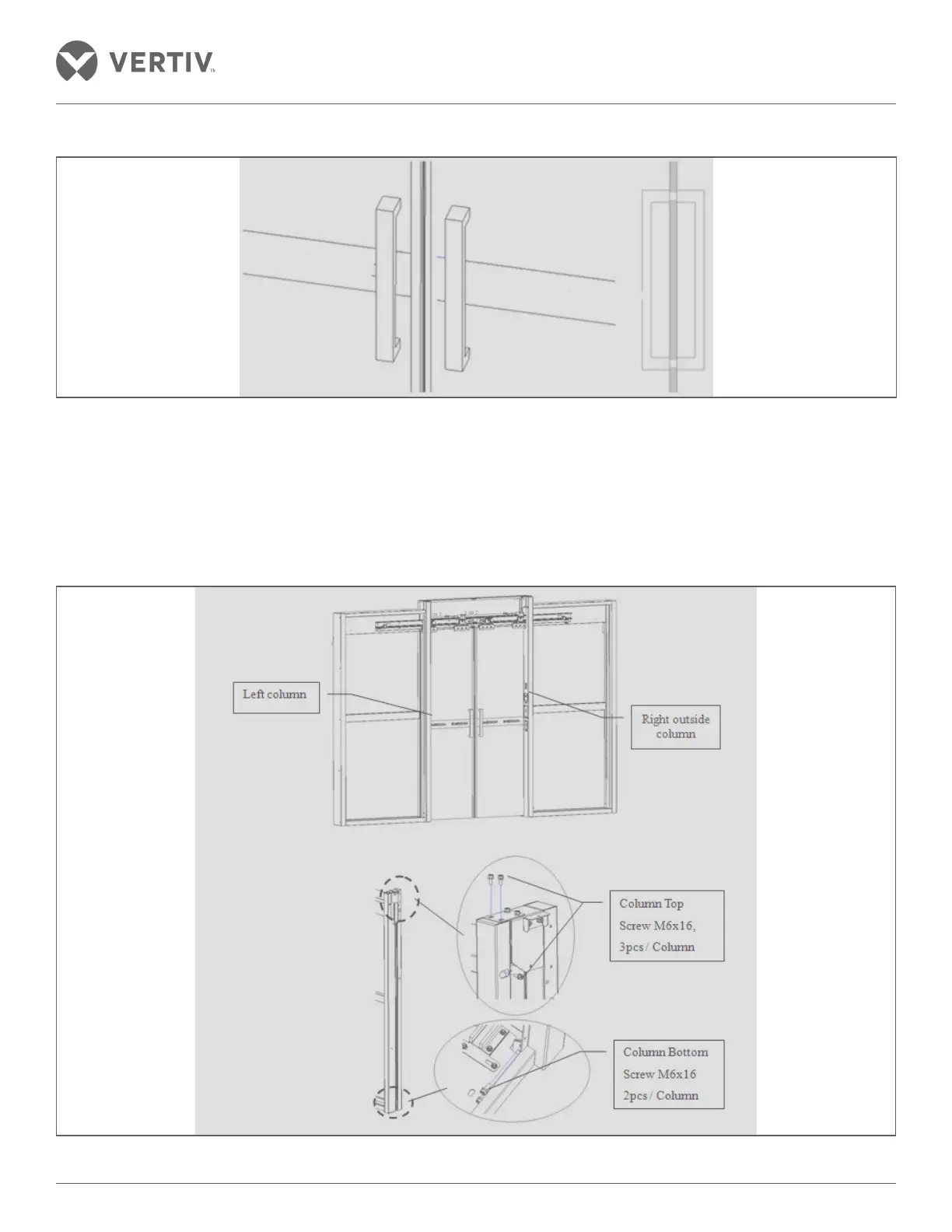

Figure 2-76 Handle installation
Installation of the outside column
• An outer vertical pillar screws (5 Nos.), which is about the same as the outer column fixation. The inner and
outer side of the glass clip has paste on the pre-column tops. During installation, the pillar tops should be
taken o to prevent it from falling over.
Figure 2-77 Column installation
