Vertiv | SmartAisle2 | User Manual 69
Installation
• The adjustment screw must be slightly loosened when the tension wheel suspension is being installed.
Refer to the next step on the leaf leveling adjustment if the door is oset.
Open Mounting
• The direction of the card is normally open towards the door closing end portion of the mounted guide rail.
• NO card defines a maximum opening degree of the sliding door, the adjustment plate is usually open and
plays a role in limiting the hanging wheel.
• When the door is open normally, the card can be smoothly opened in the card sheet, with the door opening to
adjust the range of the open position of the sheet.

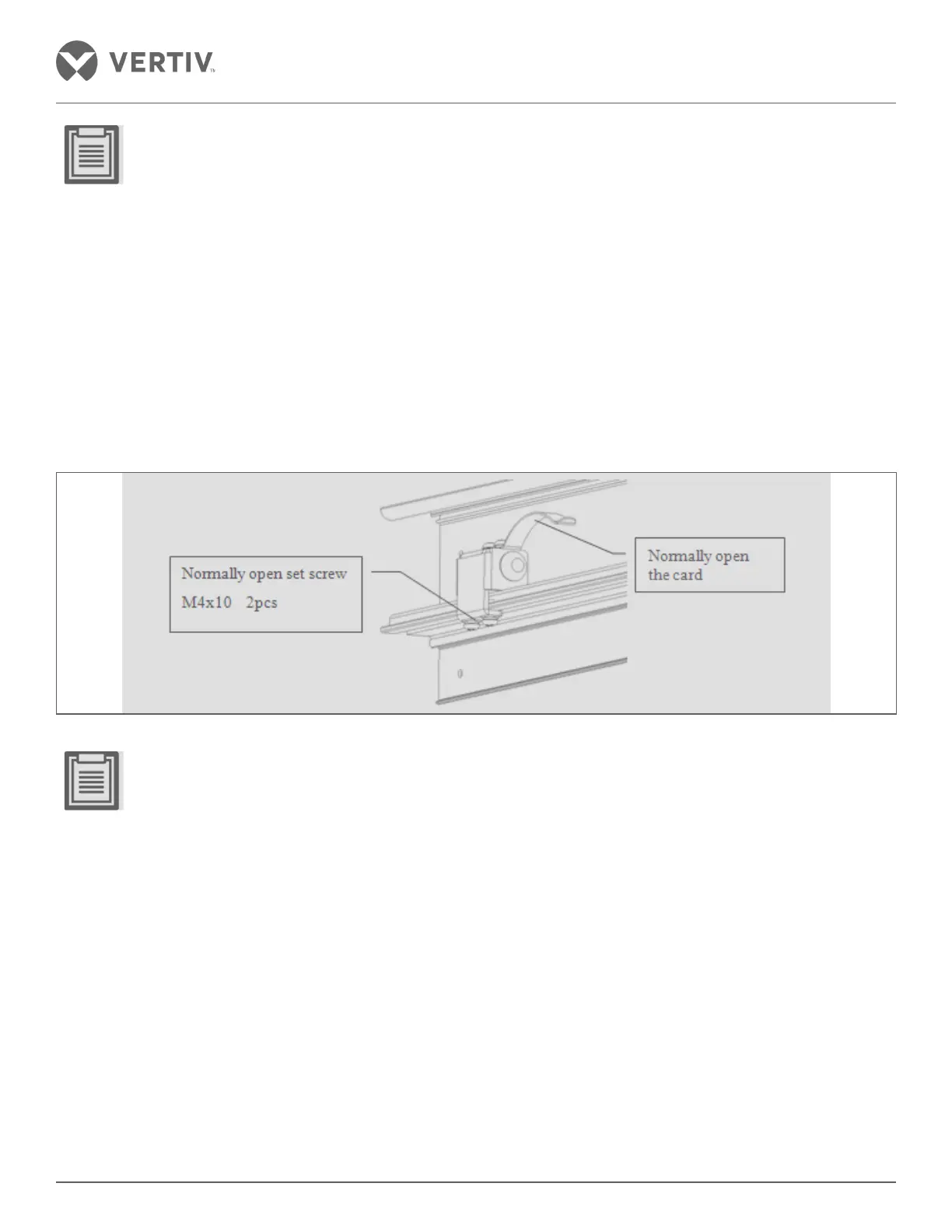

Figure 2-75 Normally open mounting plate
• The NO card is elastic in nature. The card may be manually bent appropriately and adjusted to the correct
position for an non-eective jammed door.
Handle installation
• For installation of the front door handle, a front handle is fixed by a shoulder screw. A washer that penetrates
the back surface of the glass is sandwiched between the screw head and the handle.
• Mounting the back surface of the handle includes extending the handle into the stepped head of the screw
mounting hole and locking the screw against the bottom of the stepped portion of the stepped screw.
