Installation
Mounting tension
• The tensile force in the mounting rail lock plate is due to the pulling force.
• The position adjustment of the tension and the door hanging wheel being in full contact closed state, the
tension is fixed at the current position.
• Slightly loosen screws to increase the wheel suspension; the tension of the rope is fixed to the screw collar
hanging wheel. The contractible direction of the door is closed in the direction of the rope.

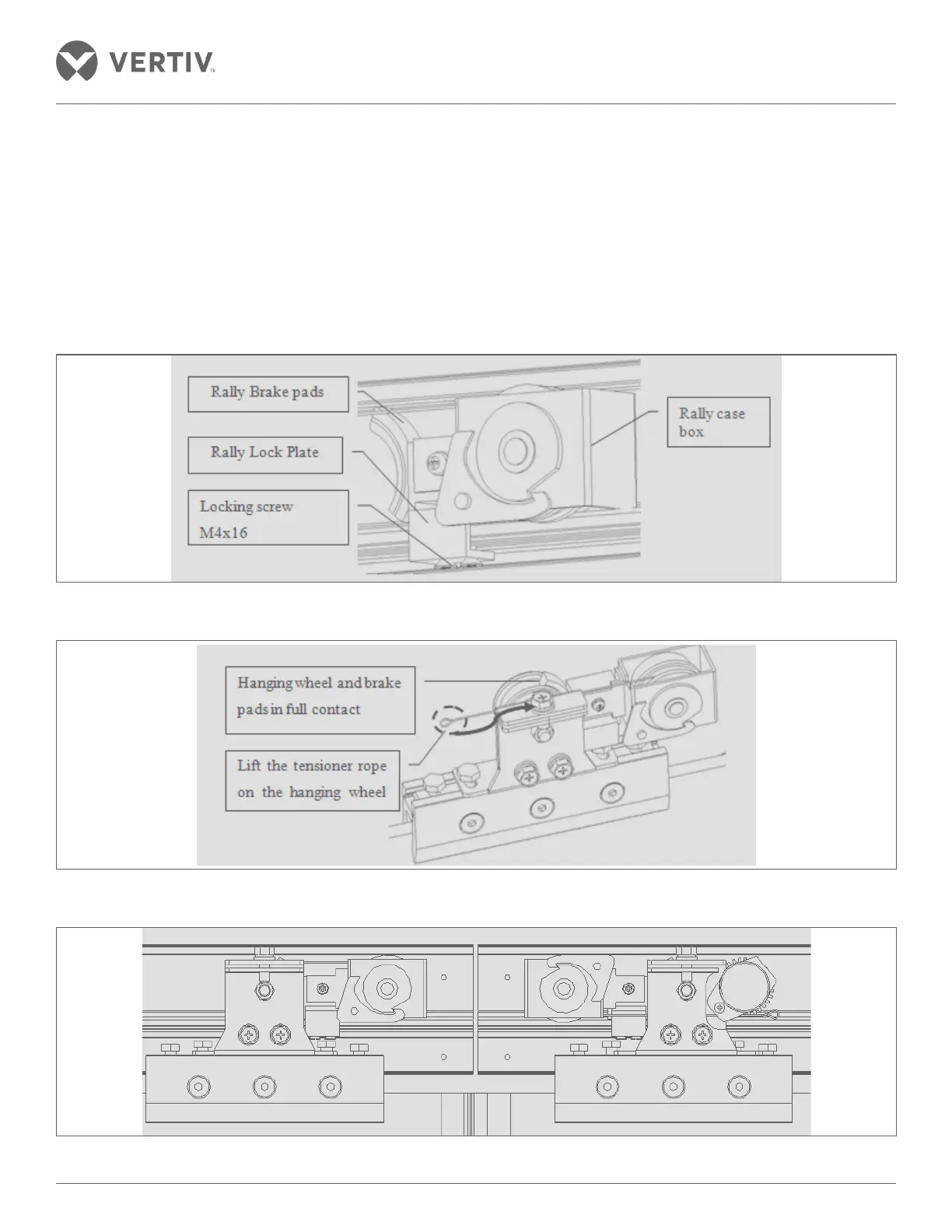

Figure 2-72 Mounting tension
Figure 2-73 Rally adjustment
Figure 2-74 Schematic installation of the rally
