Vertiv | SmartAisle2 | User Manual 67
Installation
Installing the gear unit
• Mount the gear based on the gear position wherein it is fixed hanging from the front wheel.
• Adjusting the angle of the gear unit so that the gear position can be fully engaged with gear wheel suspension.

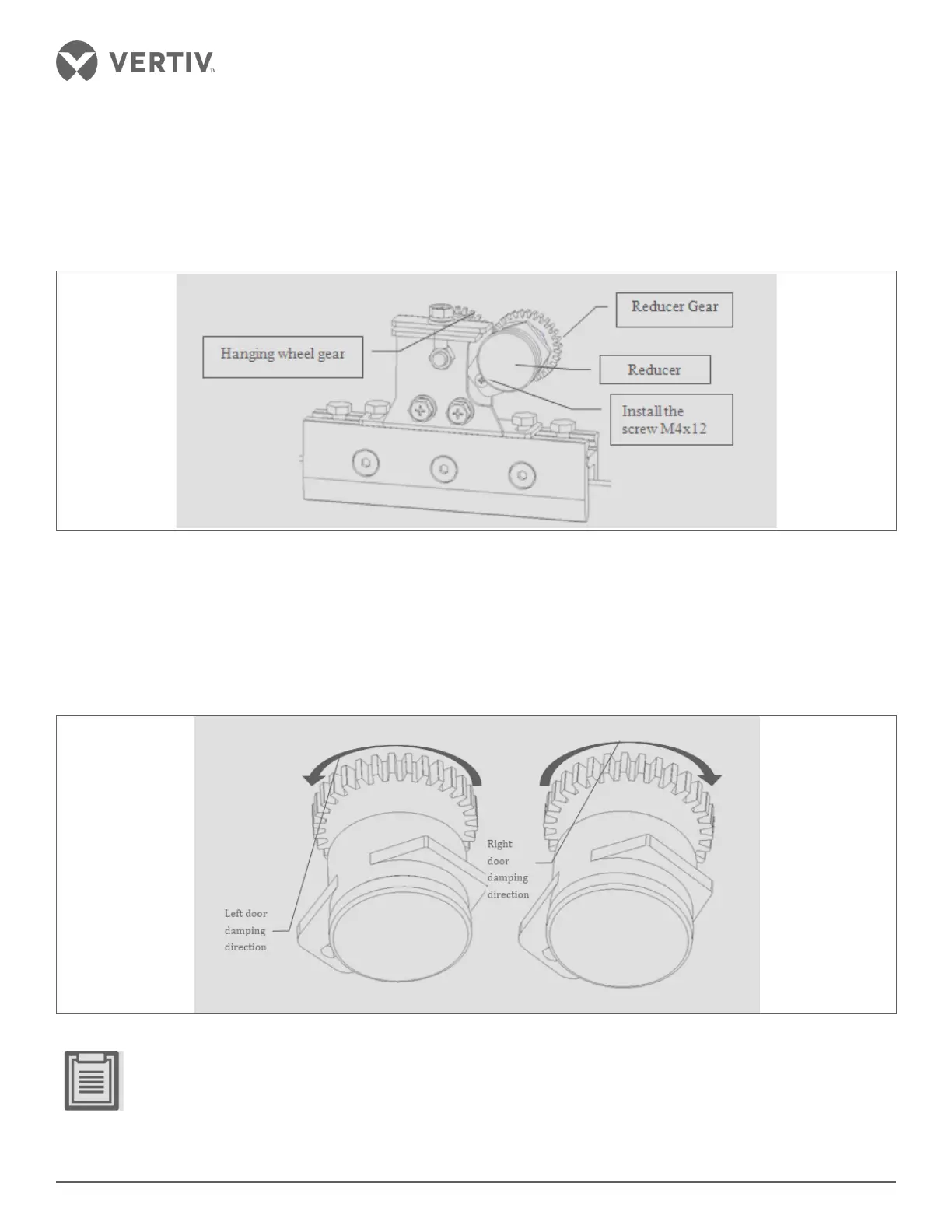

Figure 2-70 Installing the gear unit
• When the left and right door gear unit is mounted, the gear dampers are in dierent directions. The gear unit
mounting of the left door is done by reducing the speed of the gear on the left side of the door front face.
• The gear unit for the right door is installed on the right face of the front side of the door. If in opposite
direction, rotate the hanging wheel to remove the installed gear unit.
Figure 2-71 Gear aligning the direction
• Gear doors must be mounted in the direction respective to the requirements. If installed backwards the
normal operation will not result in the proper closure of the door leaf.
