Installation
The following steps must be adhered after the door hanging horizontal adjustment:
1. Loosen the nut and the limit screw of the pulleys.
2. Use a height adjustment screw for adjusting the height, remember that the door rises during clockwise
direction whereas the door drops in a counter-clockwise direction.
3. The pulley and stopper nut screw must be fitted tightly.
4. Confirm the travel resistance with the index finger and check the movement of the door. It should slide
smoothly when suspended by the hanger means on the rails.

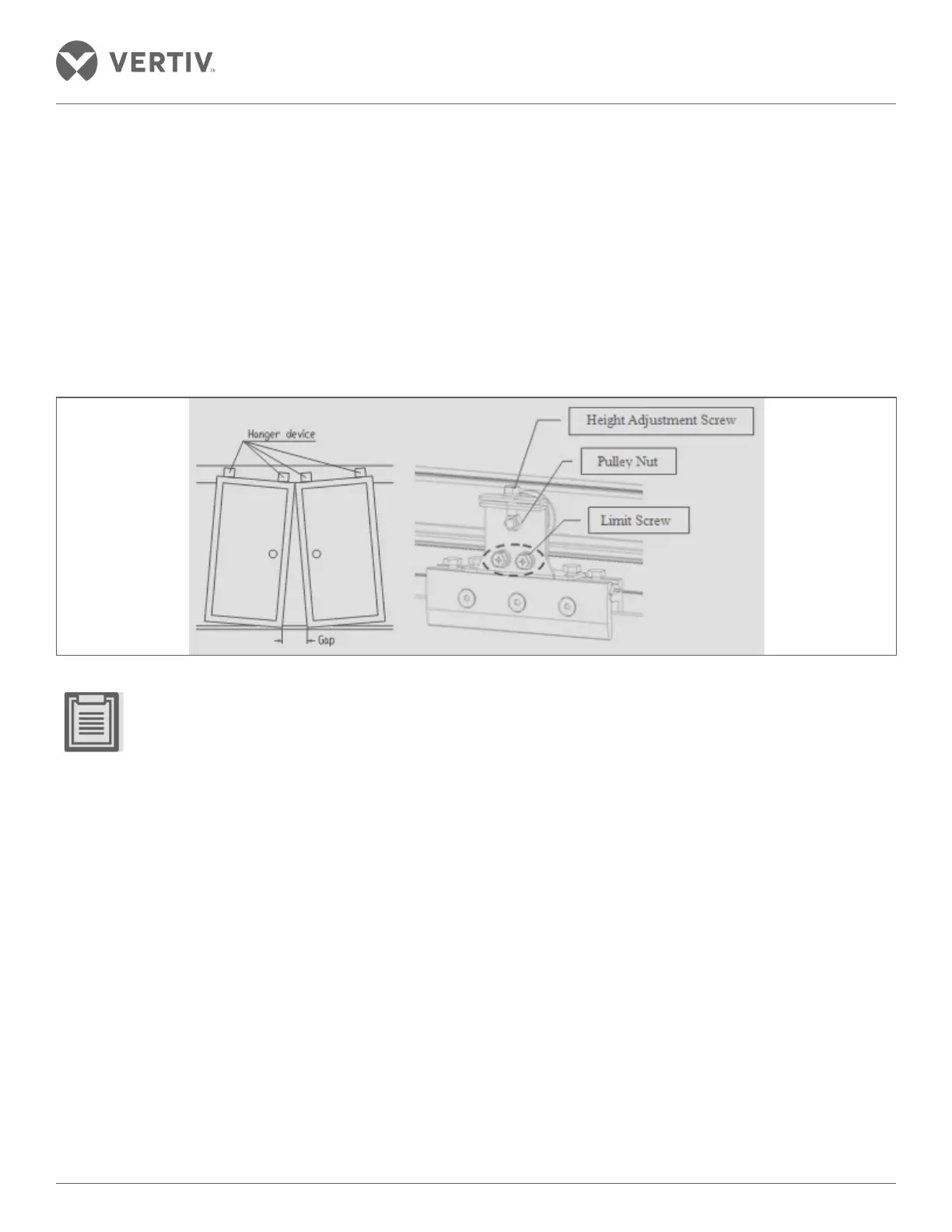

Figure 2-69 Glass door adjustment
For leaf movement, check the following points:
• Whether the hanger device is mounted vertically on the door.
• Is there any friction between the lower part of the door leaf and the bottom of the door leaf?
• Is there any friction between the hanger stopper and the engine case?
• Whether there is friction between the hanger device and the horizontal frame.
• Is there any friction between the door leaf and the door frame?
