Vertiv | SmartAisle2 | User Manual 65
Installation
Installation and adjustment of the glass door
• The magnetic strip come pre-installed on the glass door. The distance is 50 mm from one edge to the other
edge of the glass door. The doors must be checked before assembly and should be in a reliable and accurate
position. By correctly positioning the magnetic strip, it can be determined whether the mounting direction is
correct.
• Glass doors are connected to the gear wheel and set suspension using suspension bolts. The gear wheel set
on the left side hanging glass doors should be mounted on the right of the wheel set suspension.

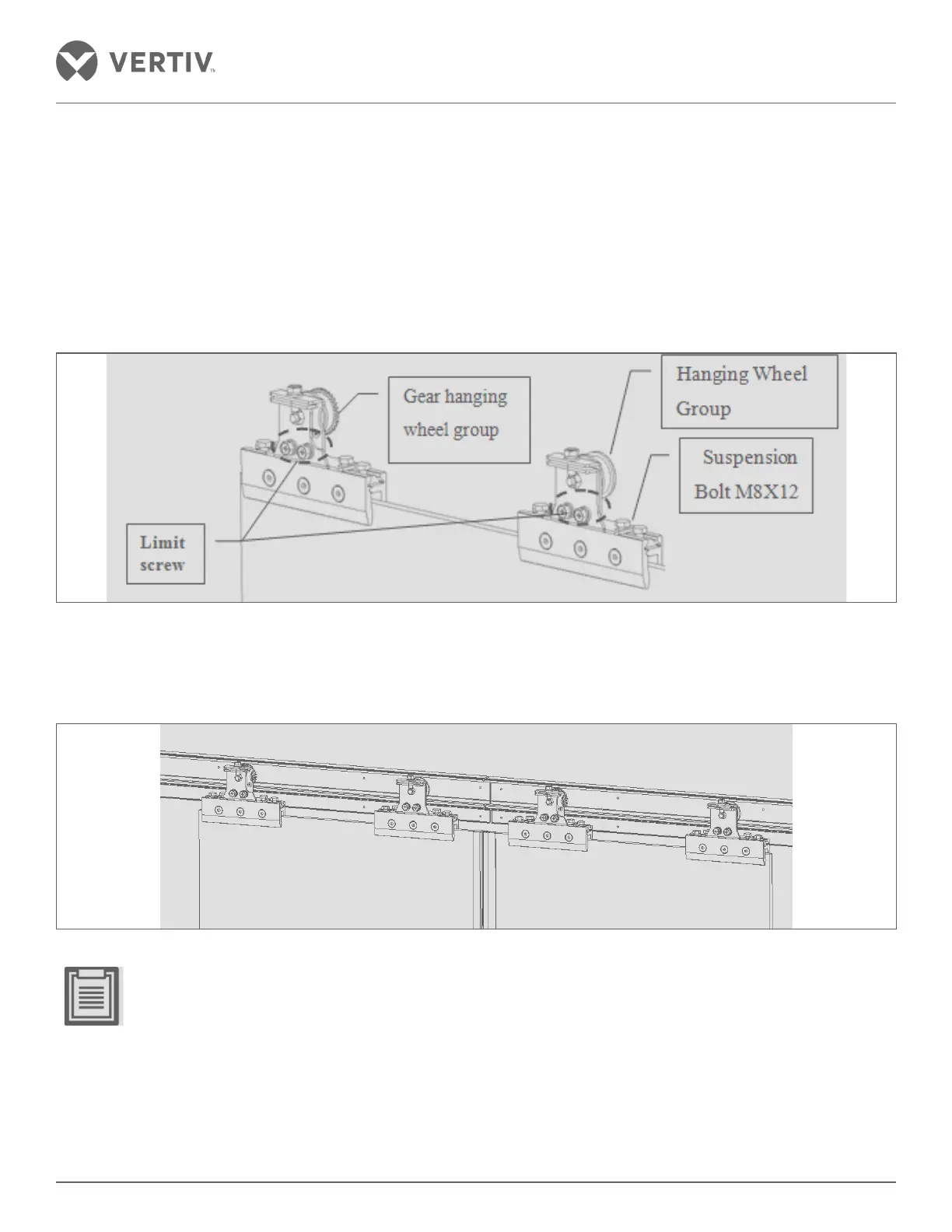

Figure 2-67 Hanger installation
• When the glass door is mounted, first the limit screw and a hanging gear wheel are removed; the glass door of
the lift rails are mounted and the limit screw is replaced.
Figure 2-68 Glass door hanging
• Prior to installation, ensure that the glass is connected to the glass door firmly and accurately, else it will
result in the glass falling o.
• On unscrewing the suspension bolt, the glass door slider within the holder may slip and fall.
• Both the left door and right door along with the lifting gear are mounted on the left wheel set and the right
hanging wheel assembly for each door; else it will result in erratic assembly.
