Installation
Rail installation
The total length of the rail is 2400 mm. Actually two rails each of 1200 mm length constitute the total length. The
rail is drilled to the frames using self tapping screws ST5.5X22 starting from both sides of the guide rail during
installation. The upper and lower row is pressed so that it is mounted and fixed firmly.

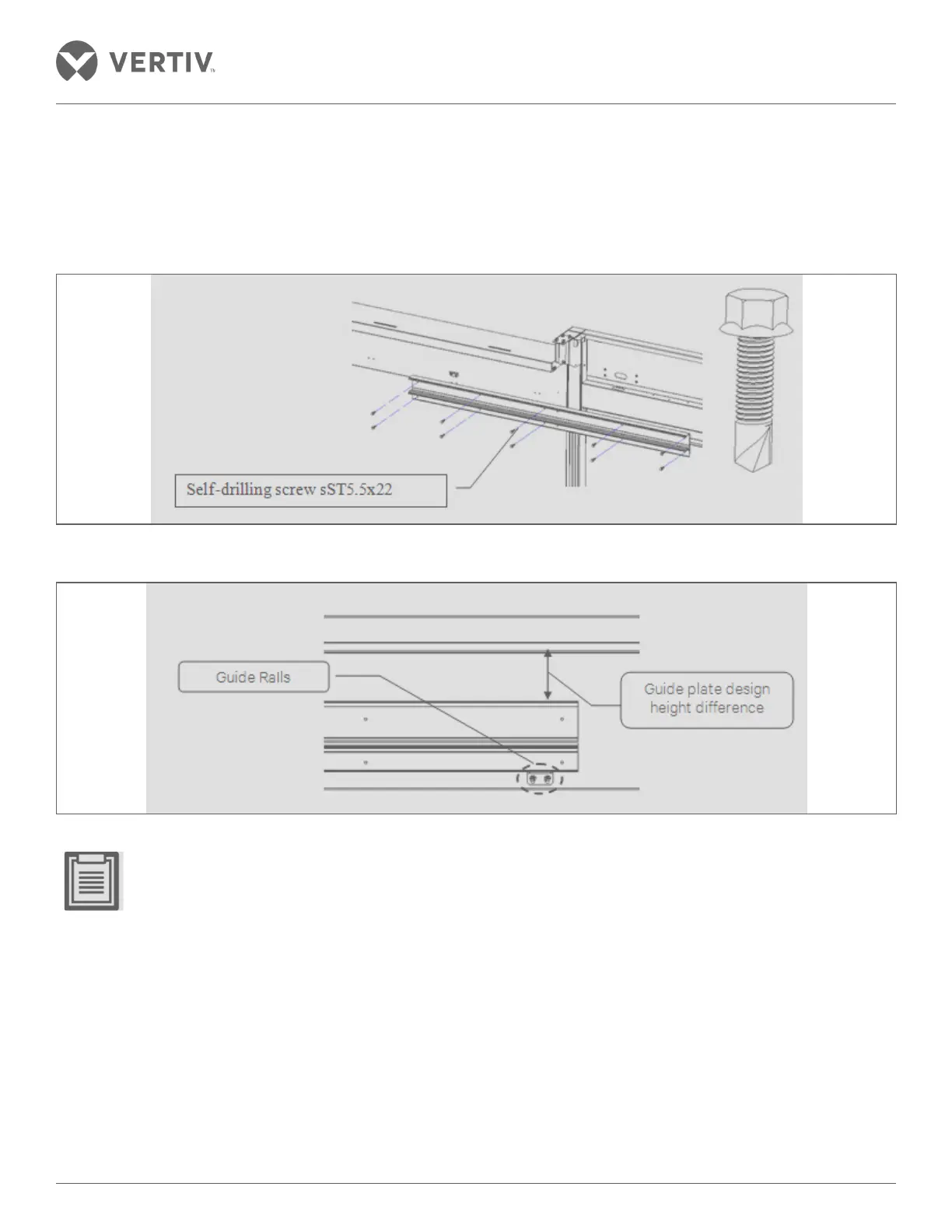

Figure 2-65 A schematic rail mounting
Figure 2-66 Positioning and leveling the rail
• The design of the guide edge is at a height dierence of 67.9 mm from the mounting plate of the upper rail
edge. Ensure that the mounting rail is in a horizontal state using a positioning member carrying the cassette
door. The preliminary positioning is done by reusing the leveling method. The position is adjusted to the ex-
act match-point of the positioning member by connected screws. Remove the positioning member after the
positioning process to avoid interference with the subsequent installation of the glass door.
• Prevent any damage to the rail during track installation, else it will adversely aect the performance and
pulley/belt life.
• The adjustment of both the tracks should be at the center position of the door while the two tracks should be
kept at the same level; it should be in a horizontal position and the gap in docking must be less than 5 mm.
