Vertiv | SmartAisle2 | User Manual 75
Installation
• Mounting cage nuts (floating nut) are installed on the top of the square mold holes; place the trunking on the
top of the cabinet. Fix the four corners of the trunking.

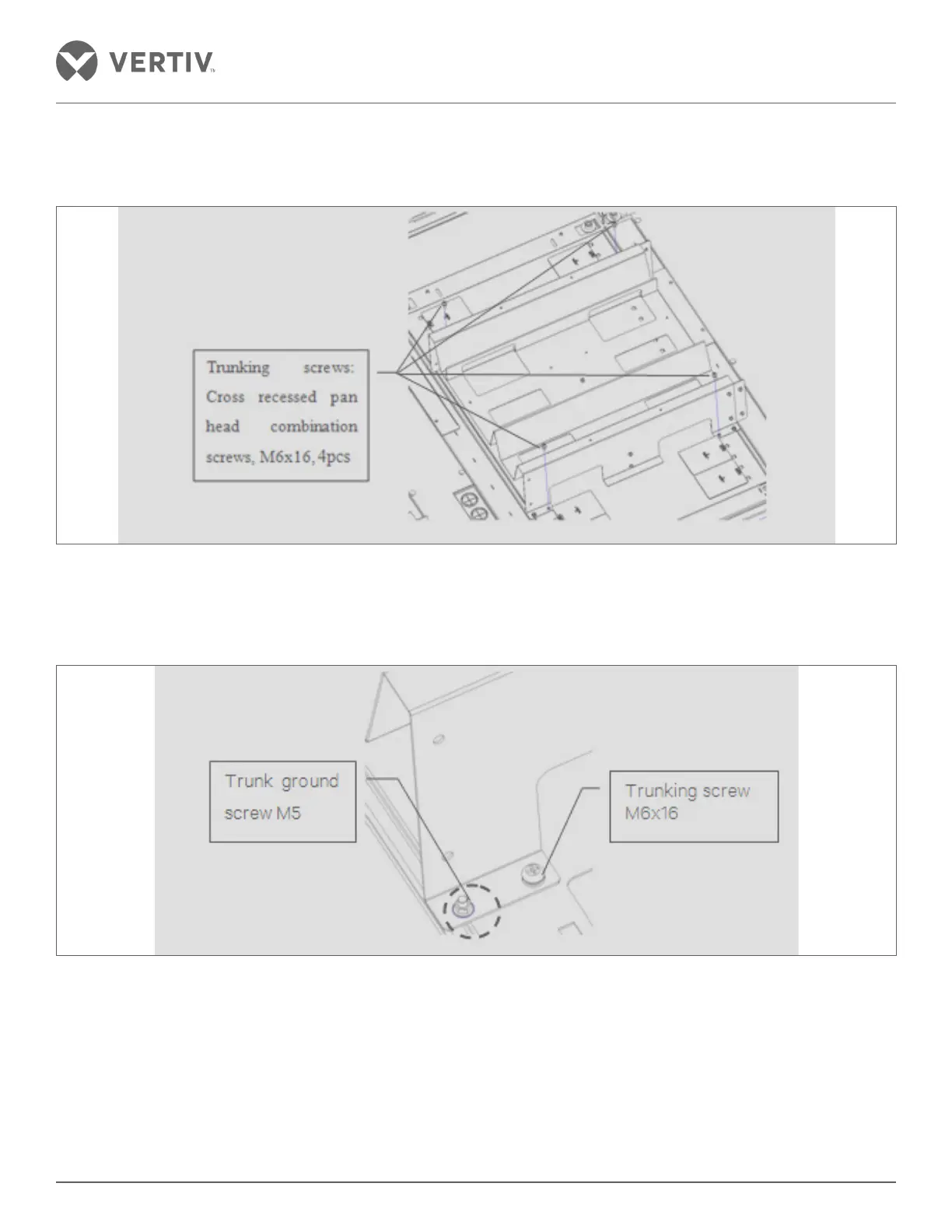

Figure 2-82 Roof installation trunking
• There are grounding screws in the four corners of the top line slot. Choose the grounding position based on
the actual situation. The grounding screw size is M5.
Figure 2-83 Trough ground point and fixed point
