Vertiv | SmartAisle2 | User Manual 76
Installation
• The connection between the roof trunking: Trunking from one end of the channel to the other end of the
passage is done from the groove; the roof trunking connector is fixed in the installed trunking on the adjacent
trough from the top to the bottom placed in the adjacent roof. So trunking along the cover connecting piece,
the mounting screw is fixed.

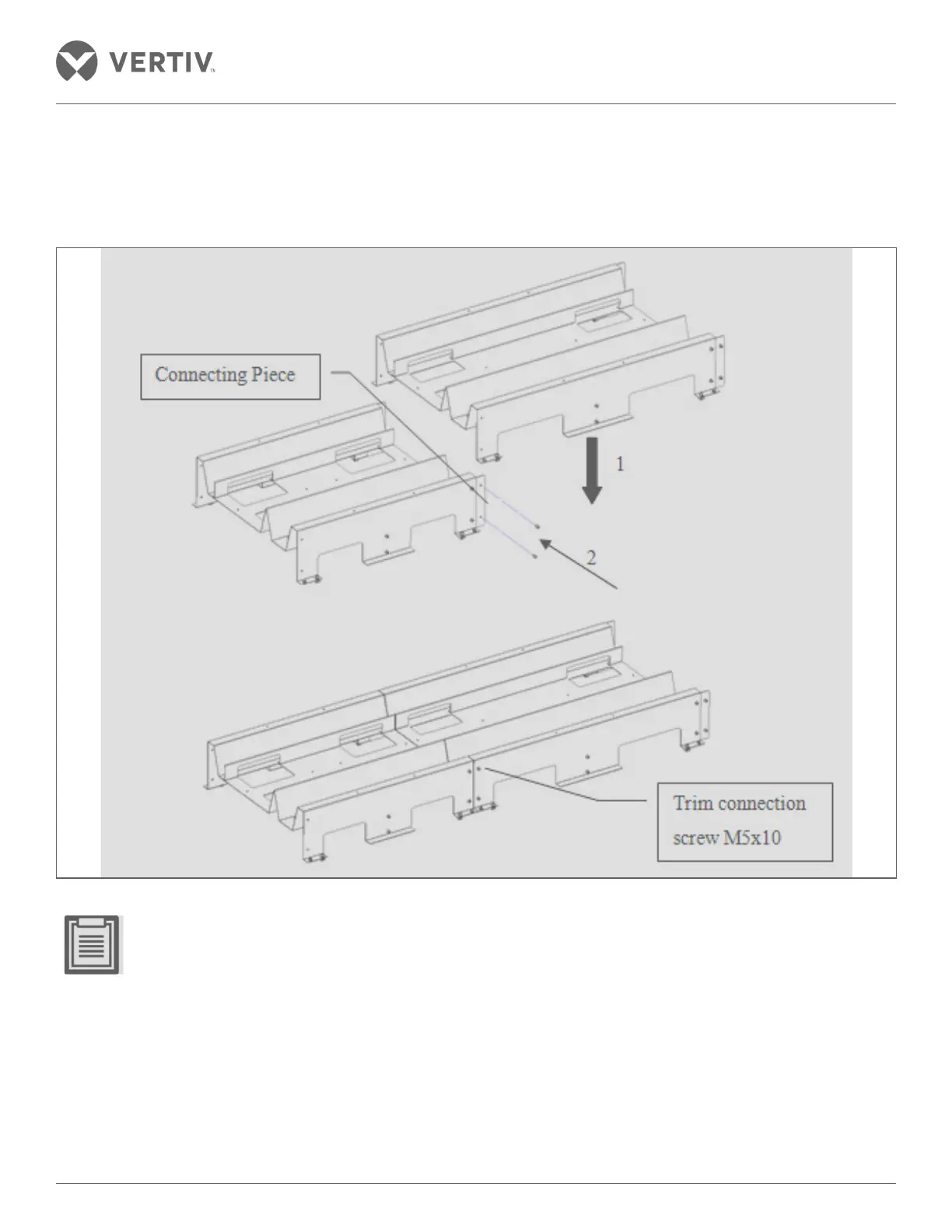

Figure 2-84 The connection between the trough
• The channel remains in the same direction during the trunking installation process.
• During trunking installation, if the top of the cabinet is without holes on the modulus, the trunking is secured
only by the connecting piece of an adjacent trunking.
• The number of high-power channel reference routing is about 25 (3-core 6 square sheath cable); copper
channel reference routing is about 300 (Cat6). The Fiber Channel reference routing is about 20. The actual
amount of wiring aected by the wiring process will fluctuate.
