Any smoke detected in the laser detection chamber is signaled to the main processor card. If the
presence of detected smoke is higher than the set thresholds it is reported as a Pre-Alarm or an
Alarm depending upon the alarm thresholds. The second stage filter further filters the air to
produce ultra clean air. The ultra clean air is used to clean the optical surfaces in the laser
detection chamber.

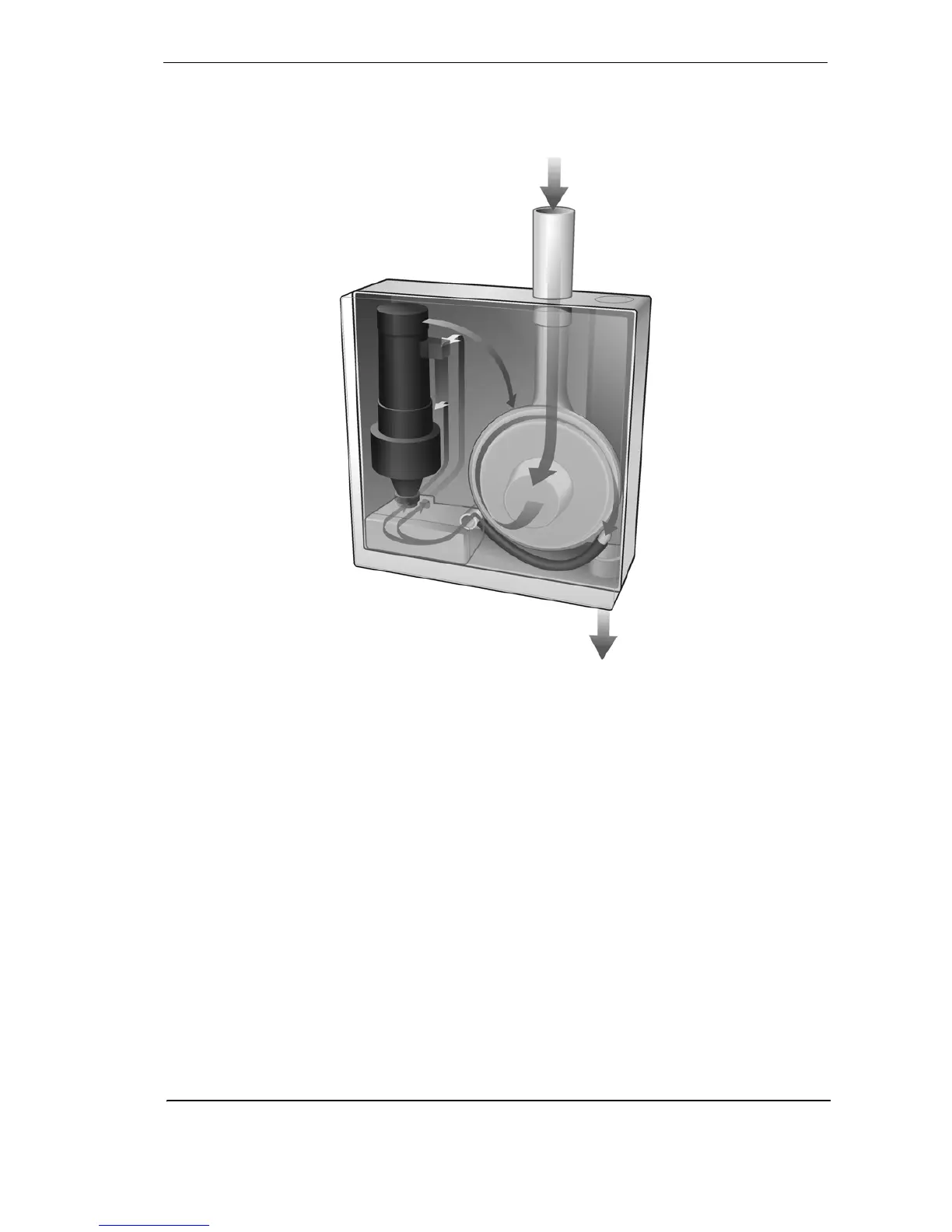

Figure 2 - Operation and internal air flow of LaserCOMPACT Detector
LaserCOMPACT display
The LaserCOMPACT has five LEDs to indicate Alarms, Faults, OK (normal working of the
detector) and Reset/Isolate status. The LaserCOMPACT VN offers the option for a remotely
mounted Display Module, see VRT-J00 Display Module mounted into a remote unit on page 5 for
details.
