VESDA
®
LaserCOMPACT Product Guide
29
Opening and Closing the detector
Opening the detector
1. Undo the two screws on front cover
2. Open the front cover and allow cover to hang by the attached plastic strap
Closing the detector
1. Replace the front cover over detector enclosure ensuring the plastic strap and cable loom
are not wedged between the cover and enclosure
2. Tighten the two screw

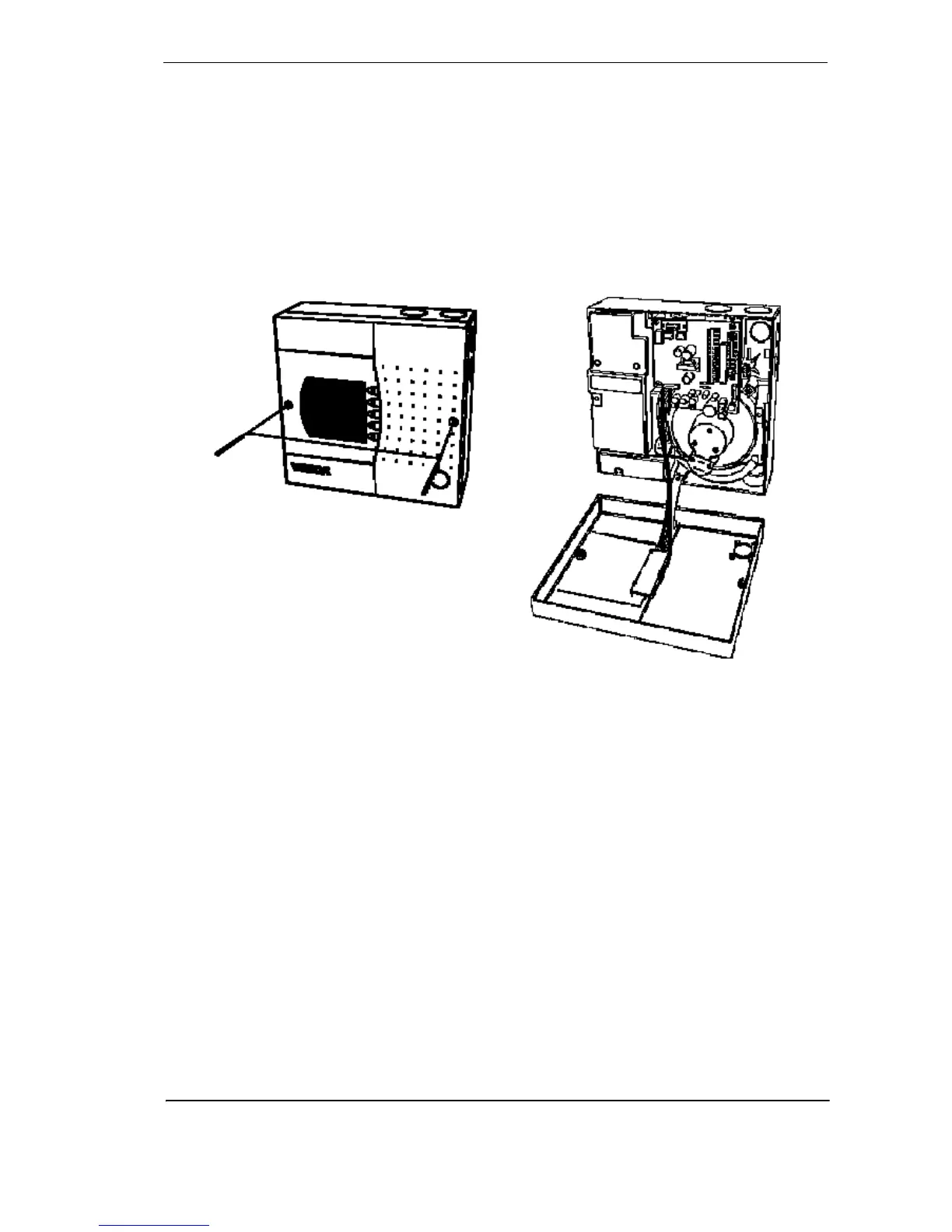

Figure 22 - Opening and closing a LaserCOMPACT detector
