VESDA LaserCOMPACT - Recess Mounting Kit; Connecting the VCL to the Pipe Network; Inlet Pipes

LaserCOMPACT Product Guide VESDA
®
18
Recess mounting kit
These kits are used to house a detector inside a wall cavity.

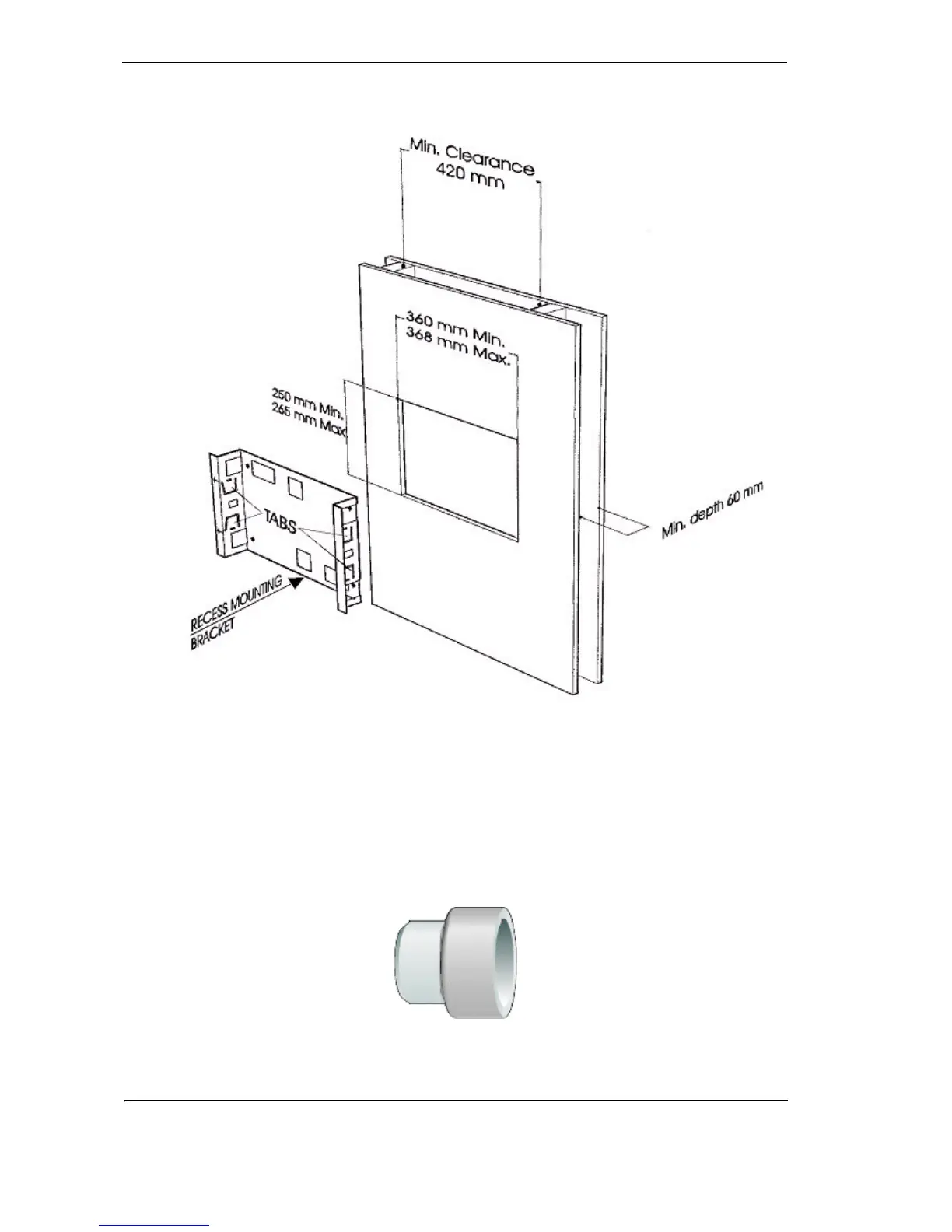

Figure 12 - Recess mounting kit
1.6 Connecting the VCL to the Pipe Network
Inlet Pipes
The air inlet port is designed to fit a standard pipe of 25 mm (1 in) OD. A 25 mm to 1.050 inches
adaptor is included for all USA shipments to fit the Pipe Inlet.
Figure 13 - Pipe reducer
