LaserCOMPACT Product Guide VESDA
®
22
Programming socket
The 15 pin or 9 pin programming socket on the termination card provides the communication
interface between the detector and a LCD Programmer or PC. Use the information listed below
to determine the type of programming device required to program the VN or the RO detector.
• VN model: The programming socket on the termination card has 15 pins. Use a LCD
Programmer and connect the programmer cable to the 15 pin VESDAnet programming
socket.
OR
• Use a PC with a VESDA PC-Link HLI and the appropriate data cables to connect to the 15
pin VESDAnet programming socket.
• RO model: The programming socket on the termination card has 9 pins. The RO model
is programmed using a PC Software. Connect the PC to the detector using a RS232 data
cable directly to the 9 pin VESDAlink programming socket.
Auxiliary / GPI Terminals:

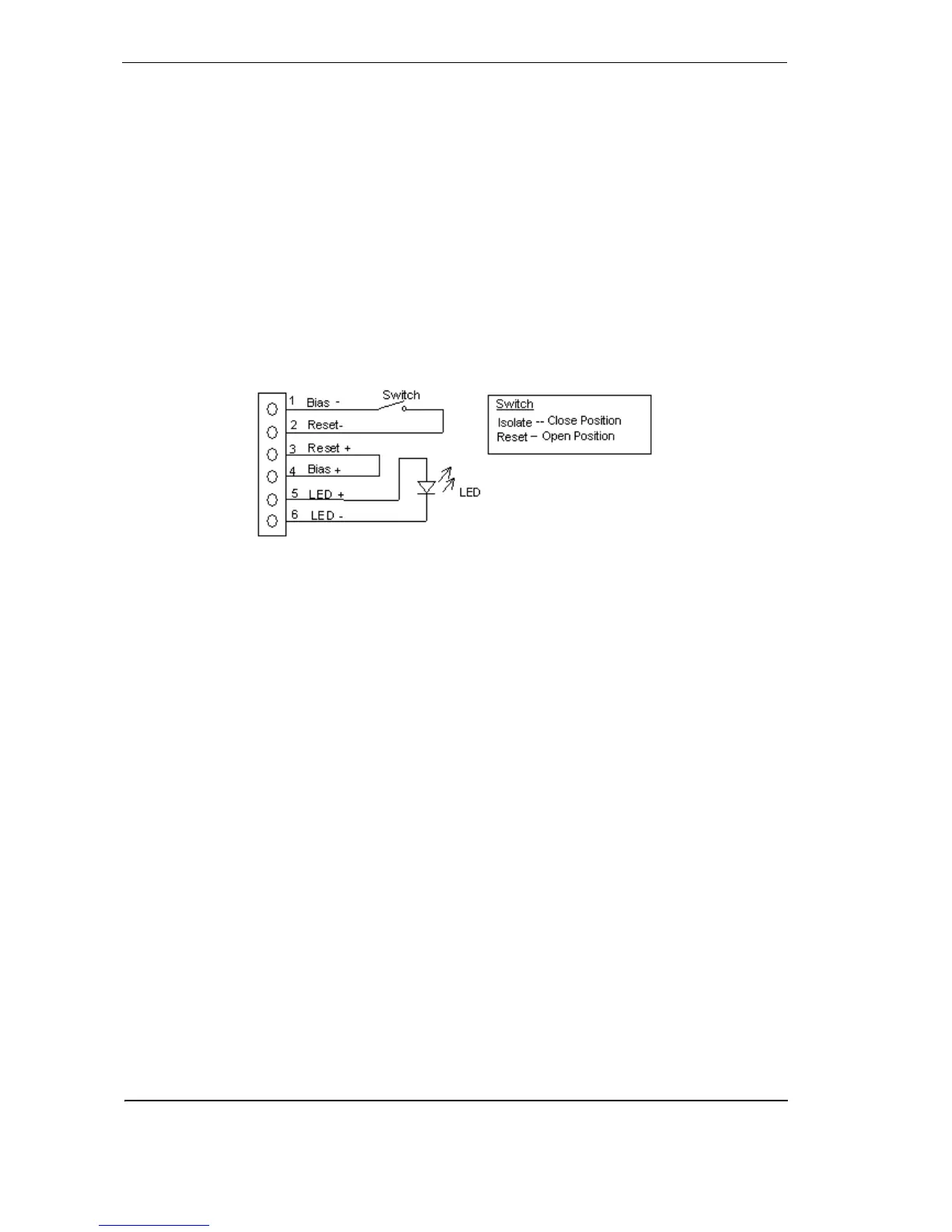

Figure 18 - Wire connection for Auxiliary / GPI Terminals
