Vespa LX 50 Workshop Manual

Specific tooling

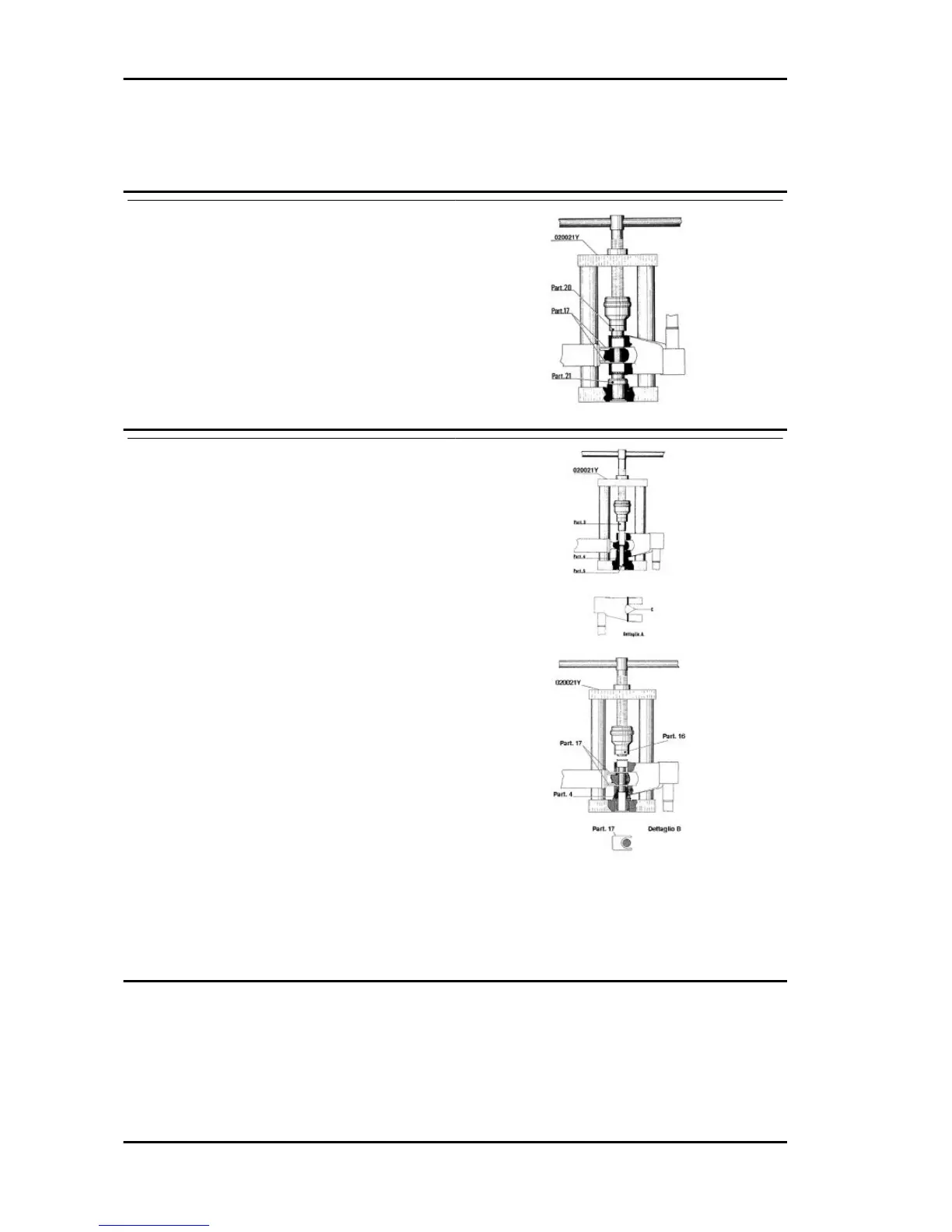

020021Y Front suspension service tool
- Use the tool fitted with part 20* and part 21* on
its stem as shown in the figure.
- Push the two roller casings with the handgrip until
their bottoms make contact with the pin end.
- Fit both dust guard rings «C» on the swinging hub
as shown in the detail drawing «A».
- Connect the swinging hub to the steering tube
with the guide pin, part 5*.
- Use the specific tool fitted with part 3* on its stem
and with part 4 at the bottom of the tool.
- Insert the previously greased pin on the swinging
hub and with the tool handgrip, move part 3 until it
stops on the steering tube.
- After fitting the pin, insert the two spacers, part
17*, slightly hitting with the mallet.
* Supplied with the tool
Specific tooling
020021Y Front suspension service tool
Recommended products
AGIP GREASE PV2 Grease for control levers
on the engine
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 °
C and +120 °C; NLGI 2; ISO-L-XBCIB2
Suspensions Vespa LX 50
SUSP - 96
