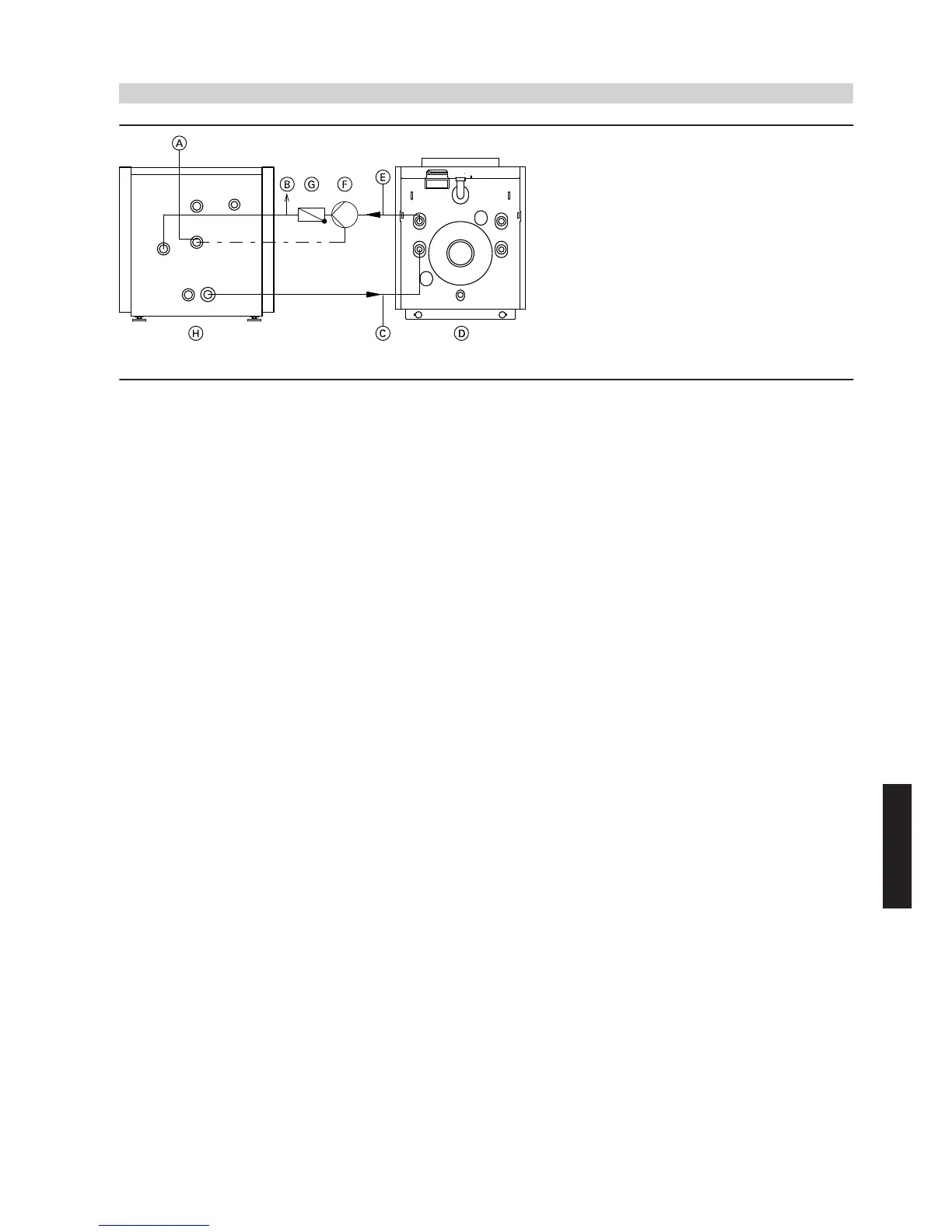

350 and 500 l capacity: Connection on the heating water side with one boiler
A
Temperature sensor/temperature controller and high limit safety
cut-out (if required)
B
Air vent valve
C
Heating water return
D
Boiler
E
Heating water flow
F
Circulation pump
G
Spring-loaded check valve
H
Vitocell 100-H or 300-H
Installation — DHW cylinders
(cont.)
DHW heating
