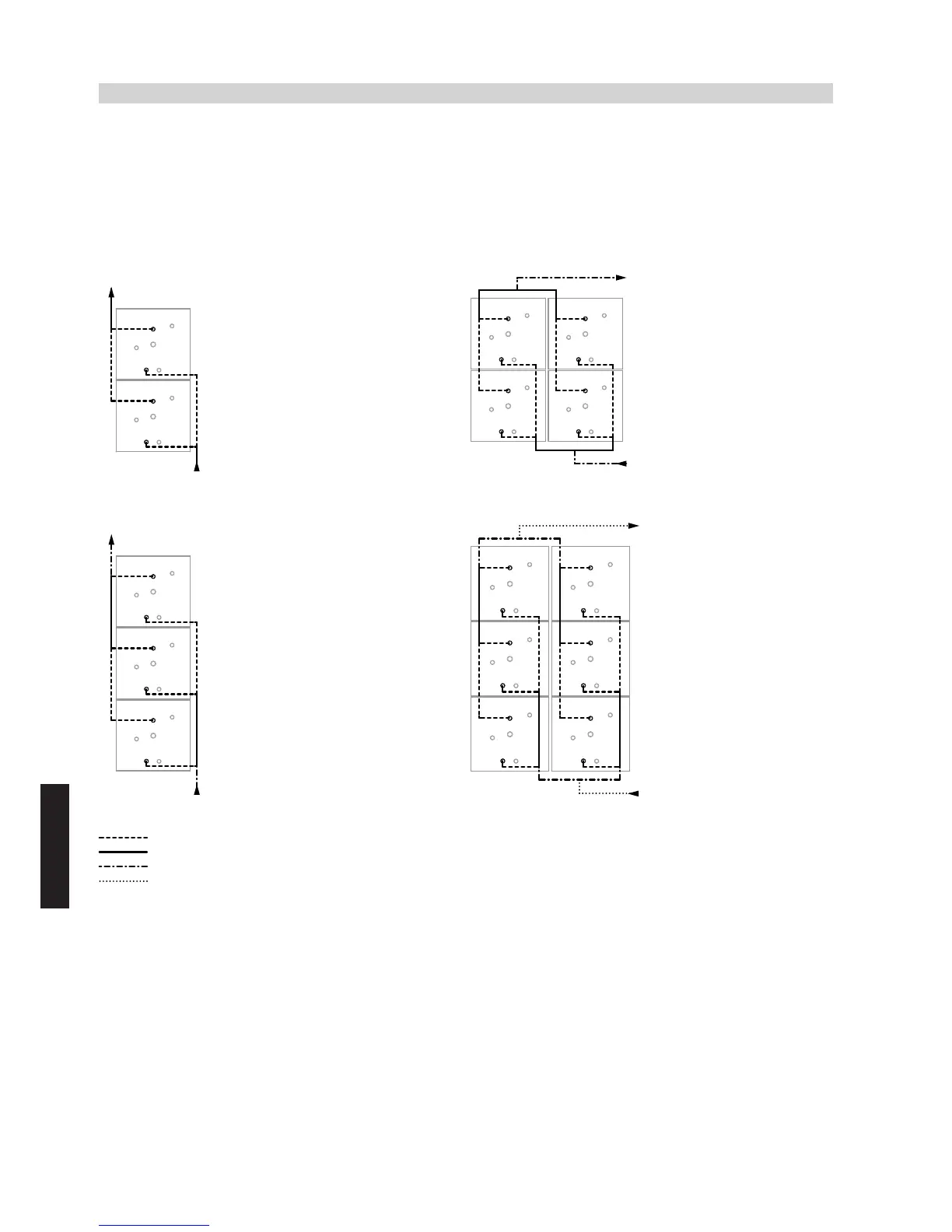

Vitocell 300-H as cylinder bank
Connection on the heating water side and arrangement of the tem-
perature controllers
Note
Observe the cross-sections of connection pipes on the heating water
side.
700 and 1000 l (two cylinders)
KW
WW
2 x 700 l and 2 x 1000 l (2 x two cylinders)
WW
KW
1500 l (three cylinders)
WW
KW
2 x 1500 l (2 x three cylinders)
KW
WW
DN 32
DN 40
DN 50
DN 65
KW Cold water
WW DHW
Installation — DHW cylinders
(cont.)
