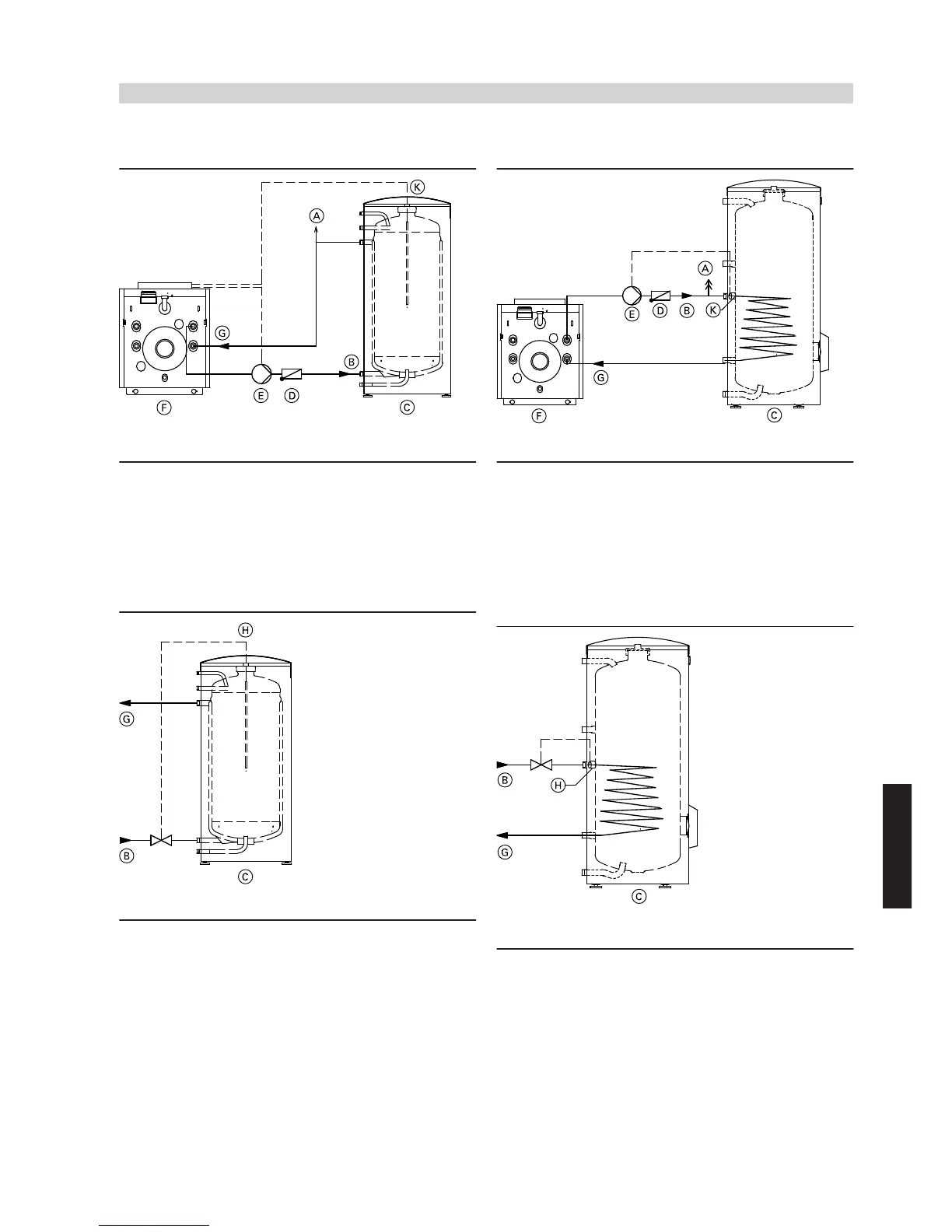

Vitocell 300-V (type EVA)
Connection on the heating water side
Control by starting/stopping the circulation pump
A
Air vent valve
B
Heating water flow
C
Vitocell 300-V (type EVA)
D
Spring-loaded check valve
E
Circulation pump
F
Boiler
G
Heating water return
K
Cylinder temperature sensor
Control via a control valve
B
Heating water flow
C
Vitocell 300-V (type EVA)
G
Heating water return
H
Sensor for water temperature controller
Vitocell 100-V and Vitocell 300-V (type EVI)
Connection on the heating water side
Control by starting/stopping the circulation pump
A
Air vent valve
B
Heating water flow
C
Vitocell 100-V or 300-V (type EVI)
D
Spring-loaded check valve
E
Circulation pump
F
Boiler
G
Heating water return
K
Temperature sensor/temperature controller and high limit safety
cut-out (if required)
Control via a control valve
B
Heating water flow
C
Vitocell 100-V or 300-V (type EVI)
G
Heating water return
H
Sensor for water temperature controller
Installation — DHW cylinders
(cont.)
DHW heating
