QE20 Fibre Networking User Manual Document: LT0732
Page 3-14 24 May 2023 Issue 1.0

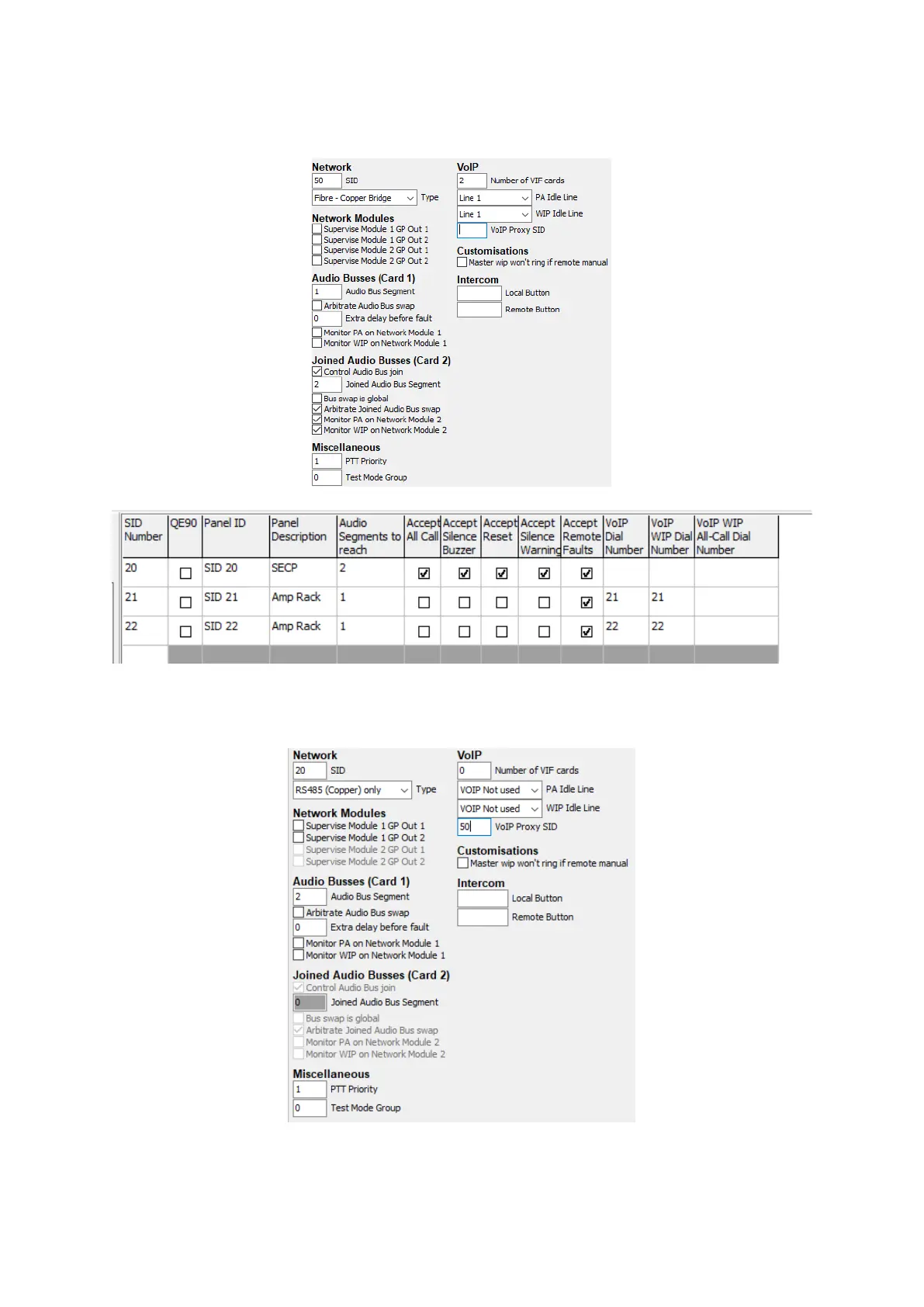

In QE20Config the Network and Remote SID programming for the MECP SID 50 is:
At the SECP, SID 20, the Network and Remote SID setups are as follows (note the
assignment of SID 50 as the VoIP Proxy SID, the Audio Bus Segment as 2, and the
ordering of the Audio Segments to reach SIDs 21 and 22).
