Service Diagnostics and Procedures
OVEN SELECTION and OFFSET ADJUSTMENT
OVEN SELECTION

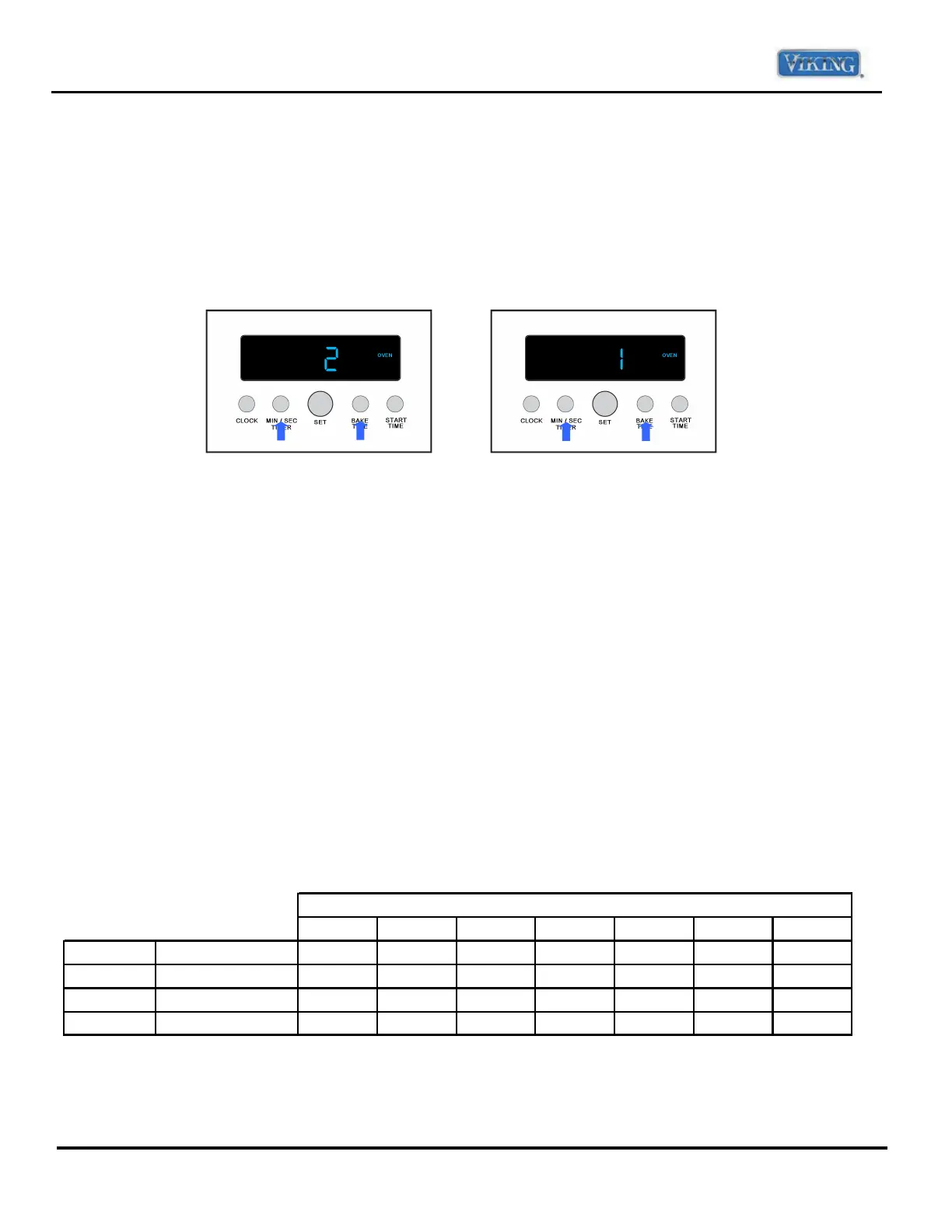

To access this parameter, you must already be in the Settings parameters. To enter, push and hold ‘‘BUTTON
2’’ and ‘‘BUTTON 3’’ simultaneously and you will hear three beeps. Continue holding for five seconds until you
hear a confirmation beep. You will see a numeric number ‘‘2’’ on the DDOE series or a numeric number ‘‘1’’
on the DSOE series in the display as shown below on left and right. If the oven selection is incorrect, depress
‘‘BUTTON 1’’ to toggle between 1 (single) or 2 (double). After setting the proper parameter, press
‘‘BUTTON 4’’ to exit the program mode.
Important Parts Information
A replacement TOD2 (Clock) comes set at a default for a double oven (2). After replacing a clock on a single
oven, you must access the Oven Selection parameter and set it to number “1” for a single oven.
Note: Failure to do this will cause improper operation.
TOD2 (Clock) and EOC4 (Control Board) compatibility
There have been some changes to the EOC4 and TOD2 products that will affect how you service the
products.
The EOC4 programming has been updated to a V25 (V20 and higher works with internal testing equipment) in
the Designer Wall ovens (DDOE / DSOE). The TOD2 had to be updated to a V9 in order to work with the new
EOC4 software. V10 is the current version for the TOD2.
In the event you need to replace an EOC4 or TOD2 in the field, please refer to the cross reference chart
below. The servicer will need to verify the version of the TOD2 and EOC4 controls in the unit. This can be
done through the diagnostics by looking at the components themselves to get the version number.
EOC4Compatible
Version V12 V15 V19 V20 V24 V25
015195‐000
TOD2Interface V4‐V6 Yes Yes No No No No
015195‐000
TOD2Interface V9 No No Yes Yes Yes Yes
015195‐000
TOD2Interface V10 No No Yes Yes Yes Yes
015195‐000
TOD2Interface V11 No No Yes Yes Yes Yes
© 2010 Viking Preferred Service
18
Double oven (DDOE)
Single oven (DSOE)
