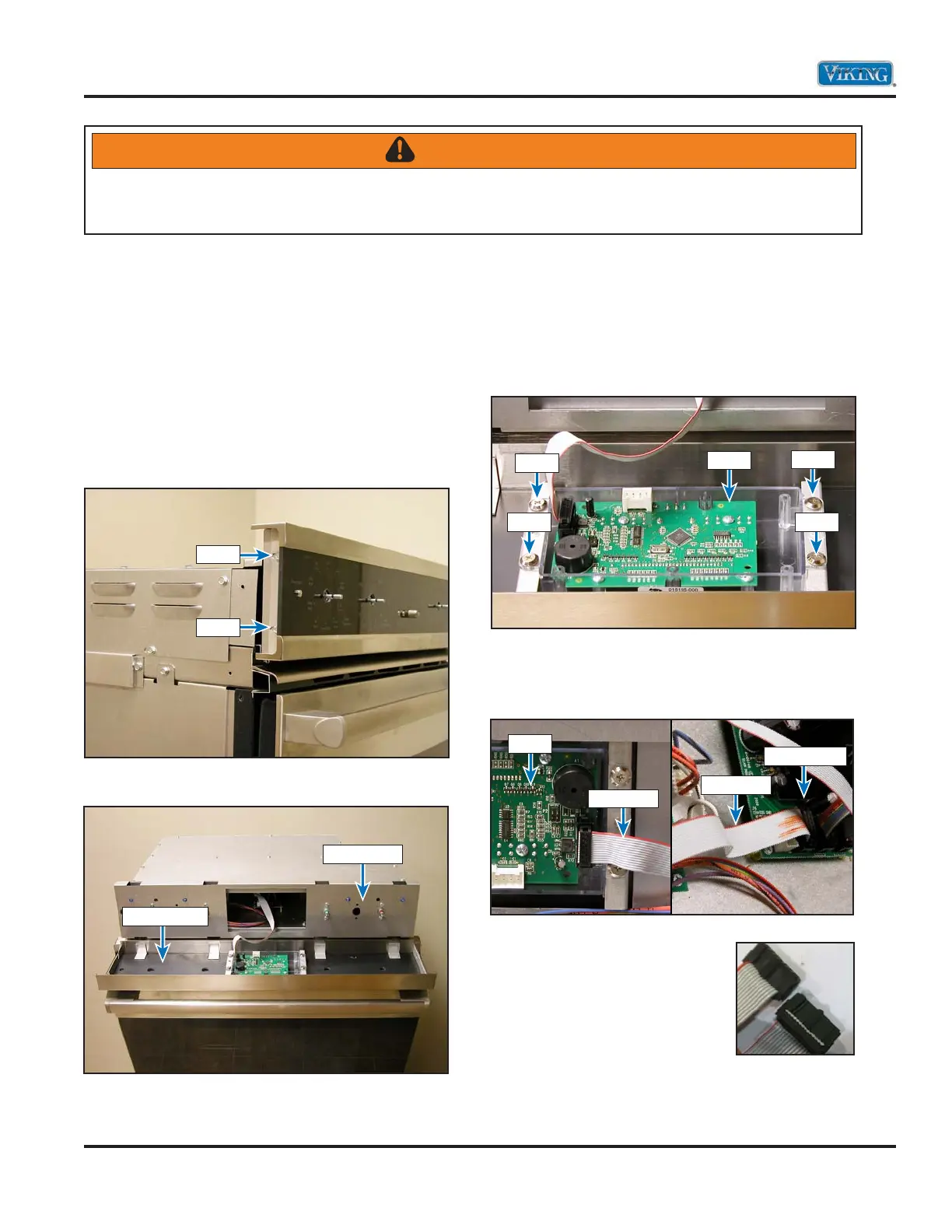

Service Diagnostics and Procedures
Clock
To access clock:
1. Follow control panel disassembly steps one
and two (see Control Panel Disassembly,
page 41).
Note: The clock assembly can be accessed
without pulling the unit completely out.
2. Remove screws on each end of control panel.
3. Separate control panel from backer plate.
4. Remove screws securing clock to control
panel.
5. Disconnect wiring and remove clock.
6. Repair or replace clock as necessary.
7. Reverse procedure to reinstall.
Note: If replacing a ribbon
cable, the orientation of the
plugs must be the same. Hold
both ends of the ribbon cable
side by side. With the plugs
in the same orientation, verify
that the red marked side is the
same on both plugs. If the red
mark is on the left on one plug and the right on the
other plug, this will not work and could damage the
control boards.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.
Screw
Screw
Screw
Screw
Clock
Screw
Screw
Control Panel
Backer Plate
Clock
Red Stripe
Power Board
Red Stripe
