Service Diagnostics and Procedures

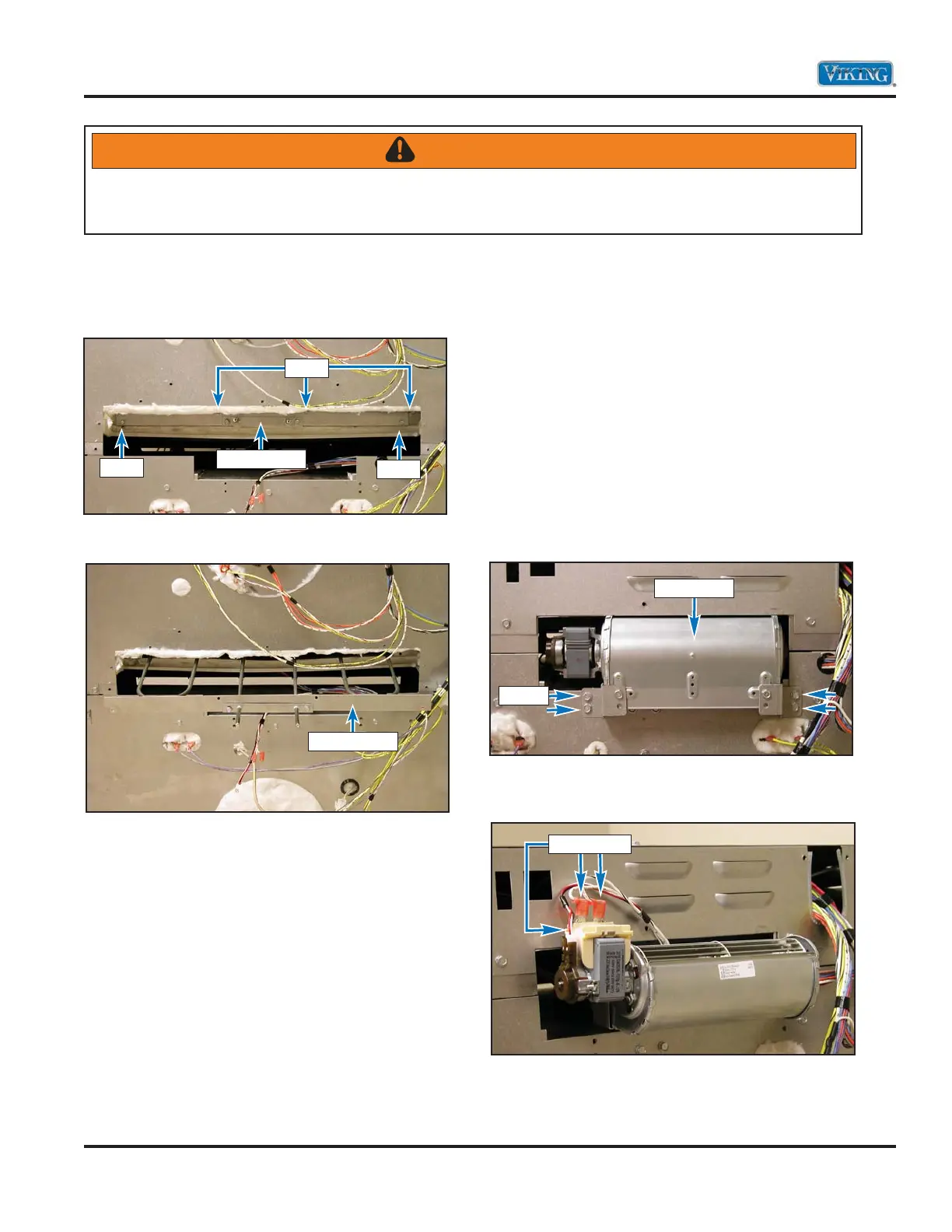

Bake Element (cont.)
6. Remove screws securing bake element to unit.
7. Slide bake element out.
8. Repair or replace bake element as necessary.
9. Reverse procedure to reinstall.
Oven Cooling Fan
The DDOE is designed to circulate air around the
control box area whenever the oven is switched
on. The cooling fan has a Hall Effect Sensor that
monitors the fan and communicates information
to the control board.
To access the cooling fan:
1. Slide unit out of installation.
2. Remove rear cover (see Upper Rear/Rear
Cover Disassembly, page 49).
3. Remove screws securing cooling fan.
4.
Remove fan and disconnect wiring to fan and
Hall Effect Sensor.
5. Repair or replace cooling fan as necessary.
6. Reverse procedure to reinstall.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.
Screw
Screw
Screw
Bake Element
Bake Element
Cooling Fan
Screws
Connections
