Viking DSOE301SS - Service Diagnostics and Procedures; Parts Location-Control Board

© 2010 Viking Preferred Service
27
Service Diagnostics and Procedures

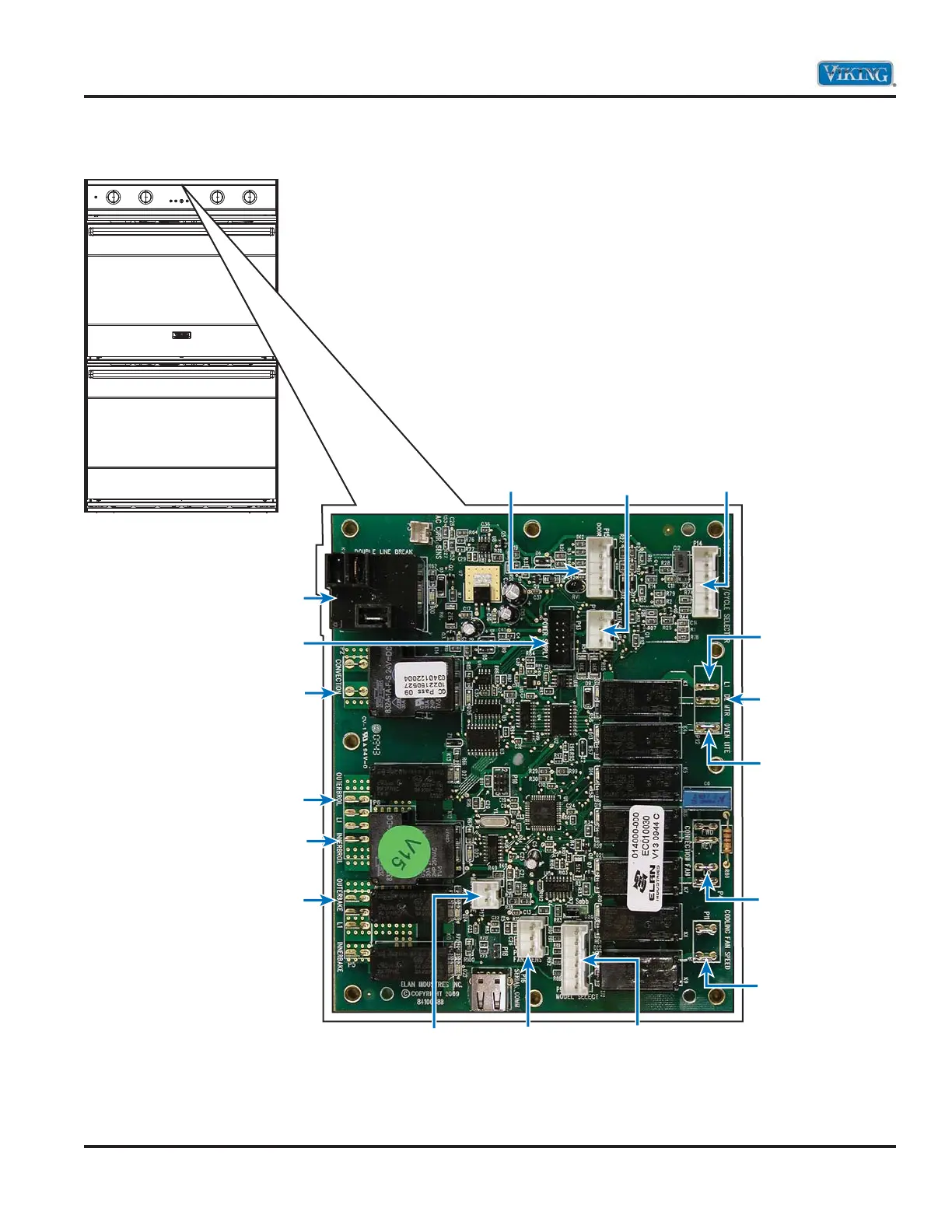

Parts Location–Control Board
(P2)
Convection
Line
Break
Power
Supply
(P1)
Line Input
(P6)
Outer Broil
(P6)
Inner Broil
(P5)
Outer Bake
(P15)
Door Latch
Switches
(P13)
Clean/Cycle
Light
(P14)
RTD,
Selector,
Themostat
(P12)
Oven Door
Light
(P12)
Oven Door
Lock Motor
(P8)
Hall Effect
Sensor
(P9)
Model
Select
(P11)
Cooling Fan
Speed
(P4)
Convection Fan
Speed
Meat
Probe
