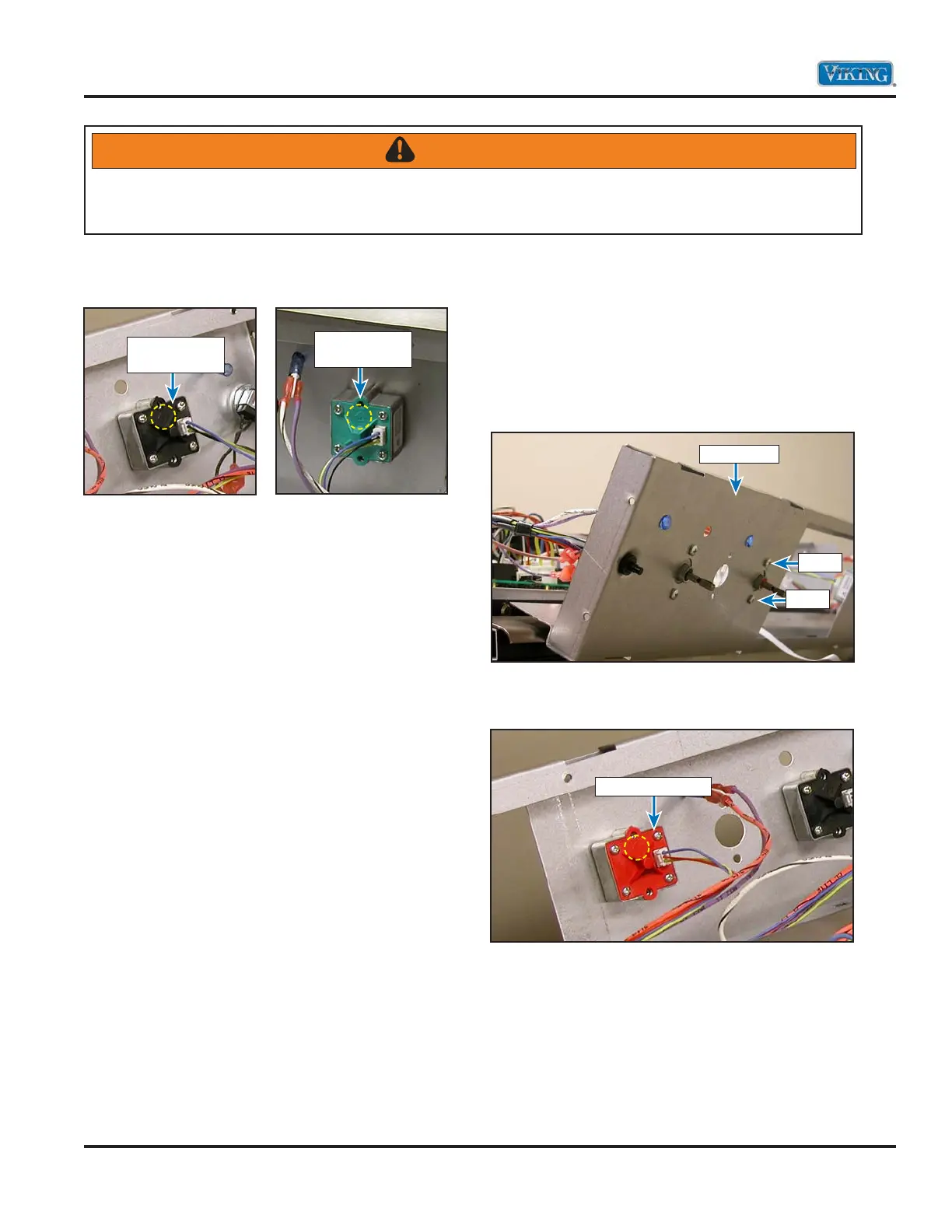

Oven Selector Switch (cont.)
Note: The DDOE 301 uses a ten position (black)
and a six position (green) selector switch. Switches
must not be interchanged.
4. Repair or replace oven selector switch as
necessary.
5. Reverse procedure to reinstall.
Note: When replacing the selector switch take
note of the position when reinstalling. There is an
indicator mark on the back of the switch (yellow
highlight) which (yellow highlight) shows the “TOP”
for orientation.
Note: DDOE301SS model shown.
Oven Thermostat Switch
To access oven thermostat switch:
1. Remove control panel (see Control Panel
Disassembly, page 41).
2. Remove screws securing oven thermostat
switch to backer plate.
3. Remove oven thermostat switch and
disconnect wiring.
4. Repair or replace oven thermostat switch as
necessary.
5. Reverse procedure to reinstall.
Note: When replacing the thermostat switch take
note of the position when reinstalling. There is an
indicator mark on the back of the switch (yellow
highlight) which shows the “TOP” for orientation.
Service Diagnostics and Procedures–Disassembly
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.
Backer Plate
Screw
Screw
Thermostat Switch
Ten Position
Selector Switch
Six Position
Selector Switch
