Service Diagnostics and Procedures

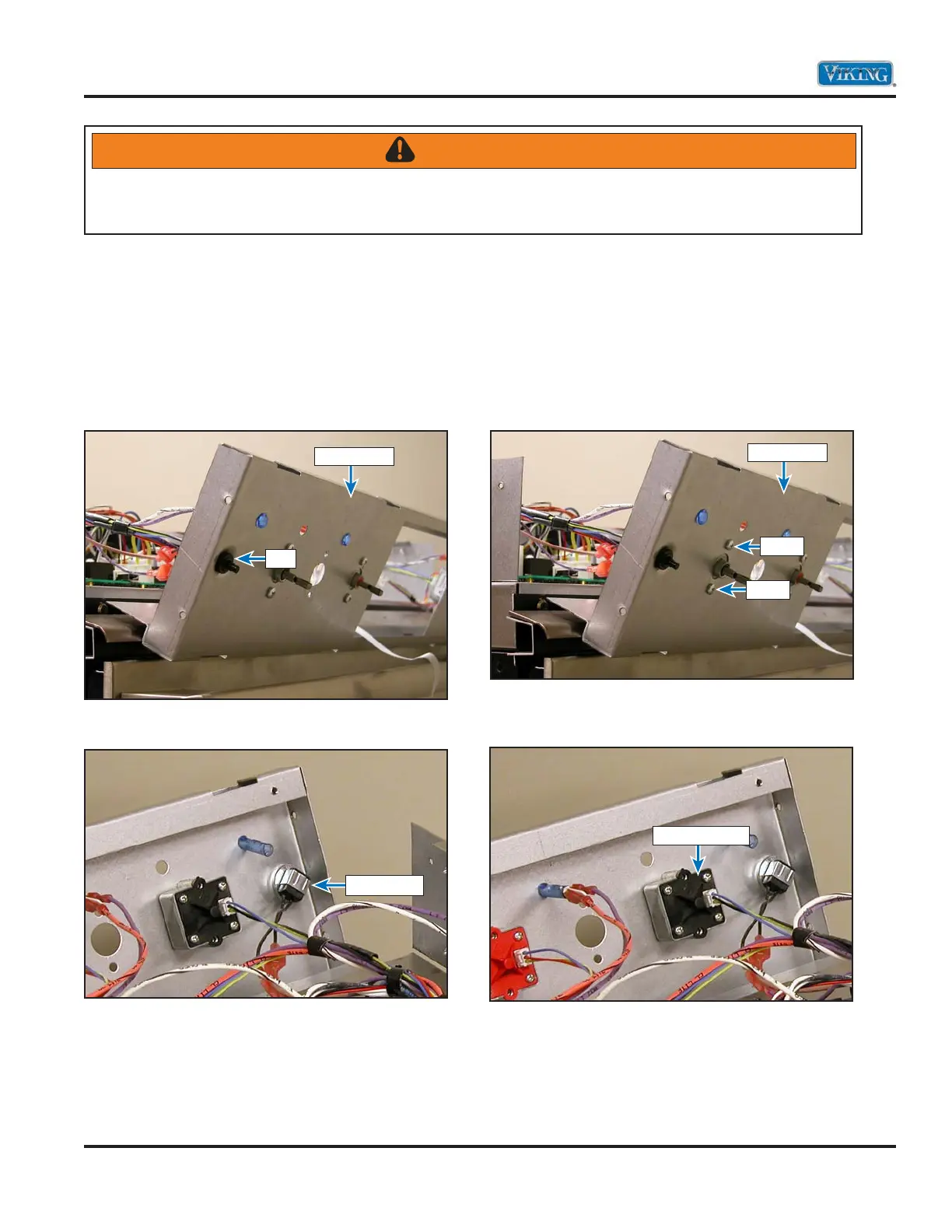

Oven Light Switch
To access oven light switch:
1. Remove control panel (see Control Panel
Disassembly, page 41).
2.
Remove nut securing light switch to backer
plate.
3. Remove light switch and disconnect wiring.
4. Repair or replace light switch as necessary.
5. Reverse procedure to reinstall.
Oven Selector Switch
To access oven selector switch:
1. Remove control panel (see Control Panel
Disassembly, page 41).
2.
Remove screws securing selector switch to
backer plate.
3. Remove oven selector switch and disconnect
wiring.
Nut
Backer Plate
Light Switch
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.
Screw
Screw
Backer Plate
Selector Switch
To Next Page
