Service Diagnostics and Procedures
Control Panel Disassembly (cont.)

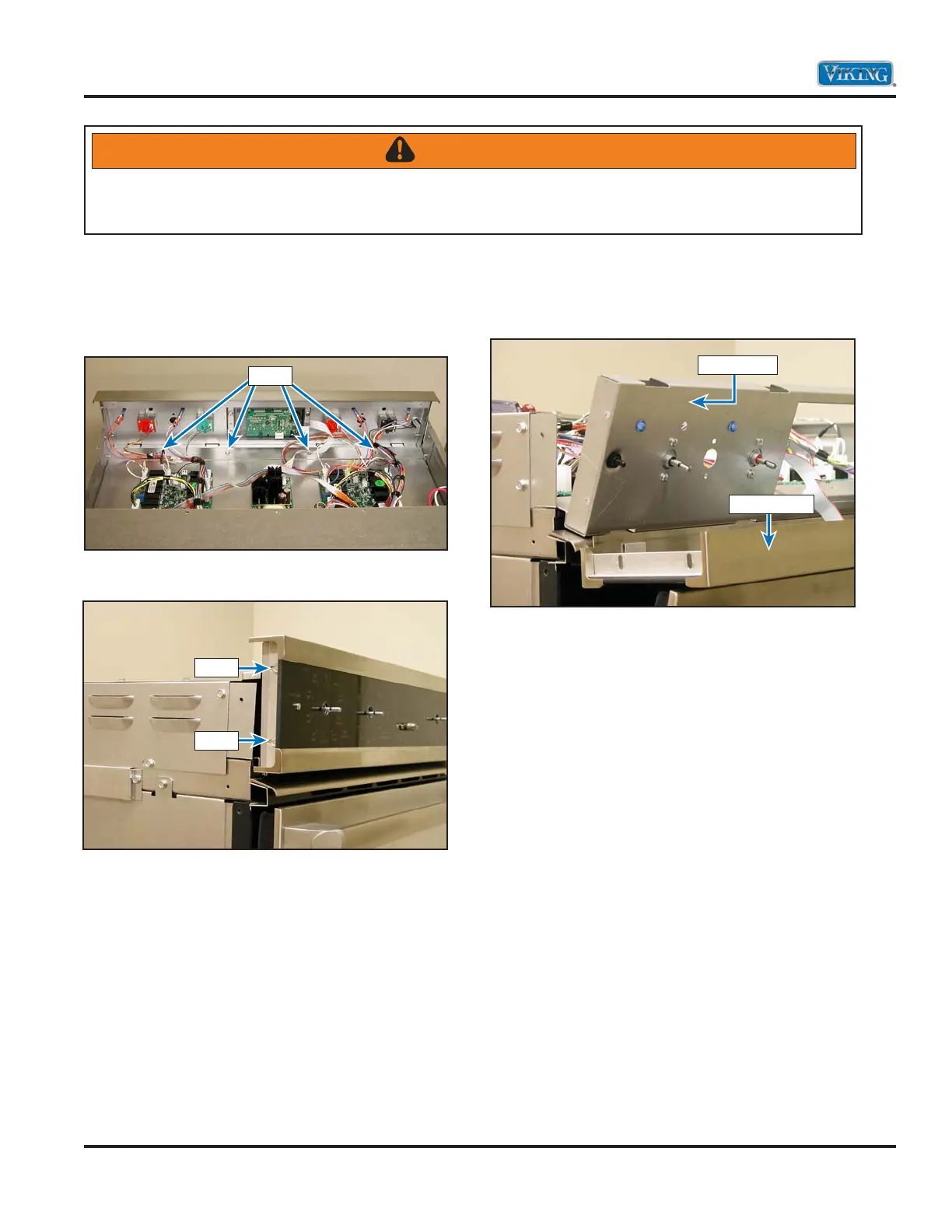

4. Remove screws securing control panel to
oven.
5. Remove screws on each end of control panel.
6. Separate control panel from backer plate.
7. Reverse procedure to reinstall.
Note: DDOE301SS model shown.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.
Backer Plate
Control Panel
Screw
Screw
Screw
