Diagnostics
Upper/Lower Diagnostics

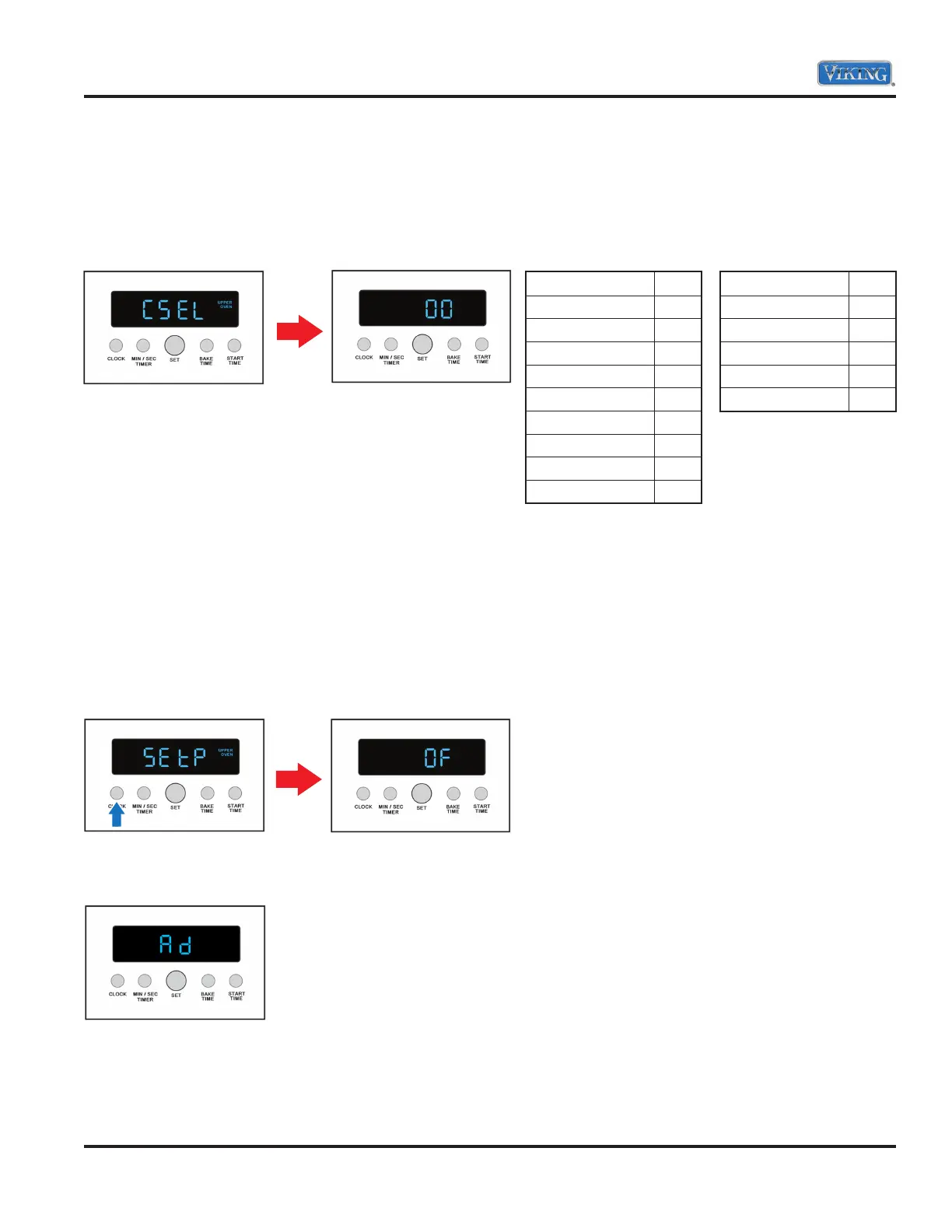

Cycle Selector–To test the selector functions, the value is a four-digit value. The first digit is the cycle ID, from
0 to 9. The remaining three digits are the raw AD value, divided by two. Rotate “SET KNOB” and compare
values shown below.
Note: Start test with the selector in the OFF position.
From OFF, rotate the “SET KNOB” switch either direction
and compare display readout to charts shown here. Readings
should be within + – 10%.
Note: It takes several seconds for all 4 digits to come up
in the display. Turn the knob and then wait for 10 seconds to
let the display settle out.
Note: To test the UPPER selector, you must be in the UPPER
test mode. The same is true for the LOWER selector.
Setpoint
When SEtP is in display, press “BUTTON 1”. With the thermostat in the OFF position, OF should be in the
display. Rotating the temperature dial to any temperature should register in the display. This will test the
potentiometer values of the thermostat.
AD–Raw setpoint AD (Analog to Digital) value.
SKIP THIS TEST
Upper Oven ID
Bake 1479
Convection 2420
Tru Convection 3358
Convection Roast 4297
Convection Bake 5239
Hi Broil 6182
Med Broil 7125
Low Broil 8066
Self-Clean 9015
Lower Oven ID
Bake 1441
Hi Broil 2339
Med Broil 3237
Low-Broil 4143
Self-Clean 5053
Press
“BUTTON 1”
Press
“BUTTON 1”
