~ 16 ~

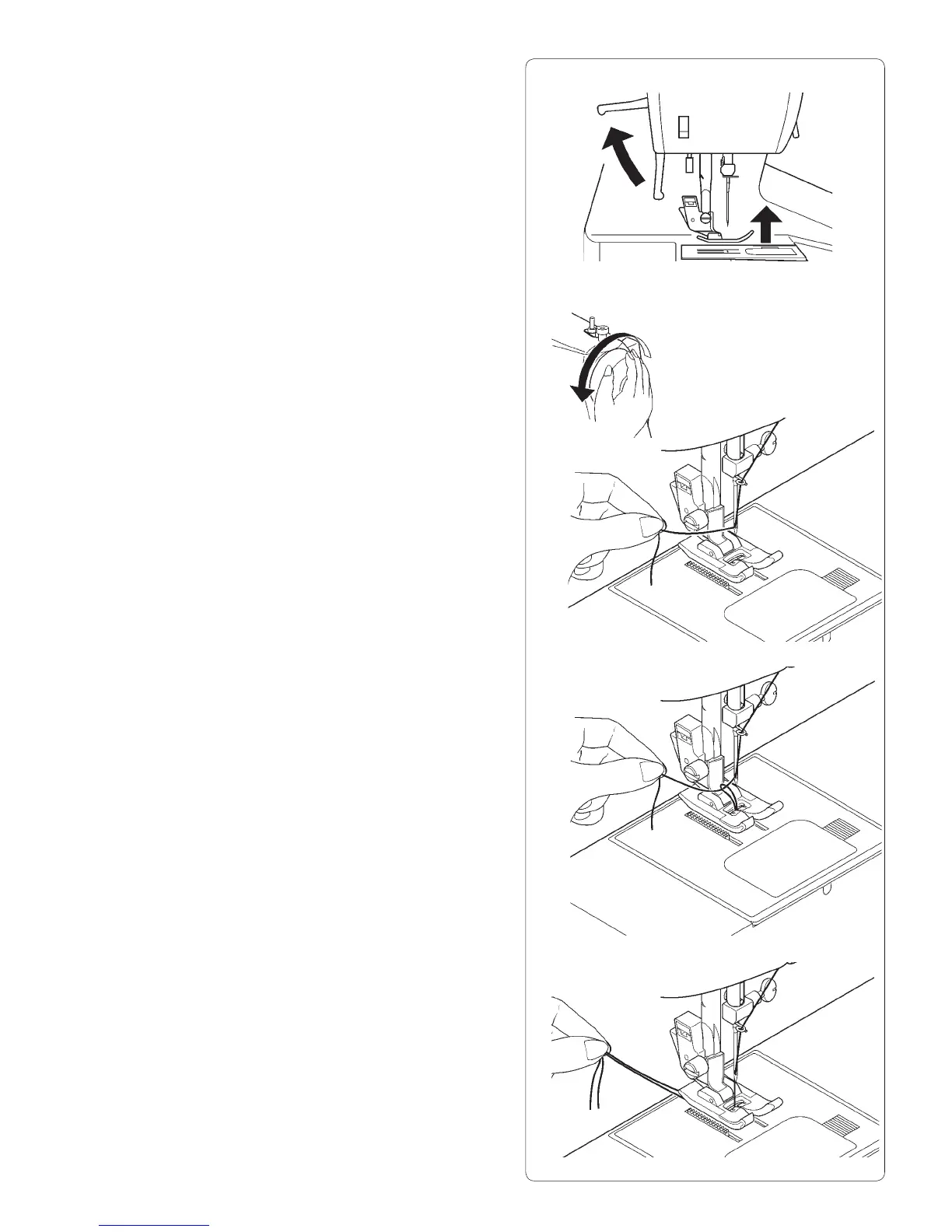

PULL UP THE BOBBIN THREAD
1. Raise the presser foot lifter.
2. Hold the needle thread loosely with your left hand. Turn
the hand wheel toward you with your right hand, À rst
lower the needle, then continue until the needle is in its
highest position.
3. Lightly pull the top thread to pick up the bobbin thread.
The bobbin thread appears in the hole in the needle
plate.
4. Pull both top and bobbin threads under the presser foot,
toward the back of the machine (pull out about 6” (15 cm)
of thread).
eng manual rev1.indd 16 2009-11-24 11:12:33
